For models: Nos. 12" , 16" , 20" , and 24"
                S/N's starting with ARA or AYA

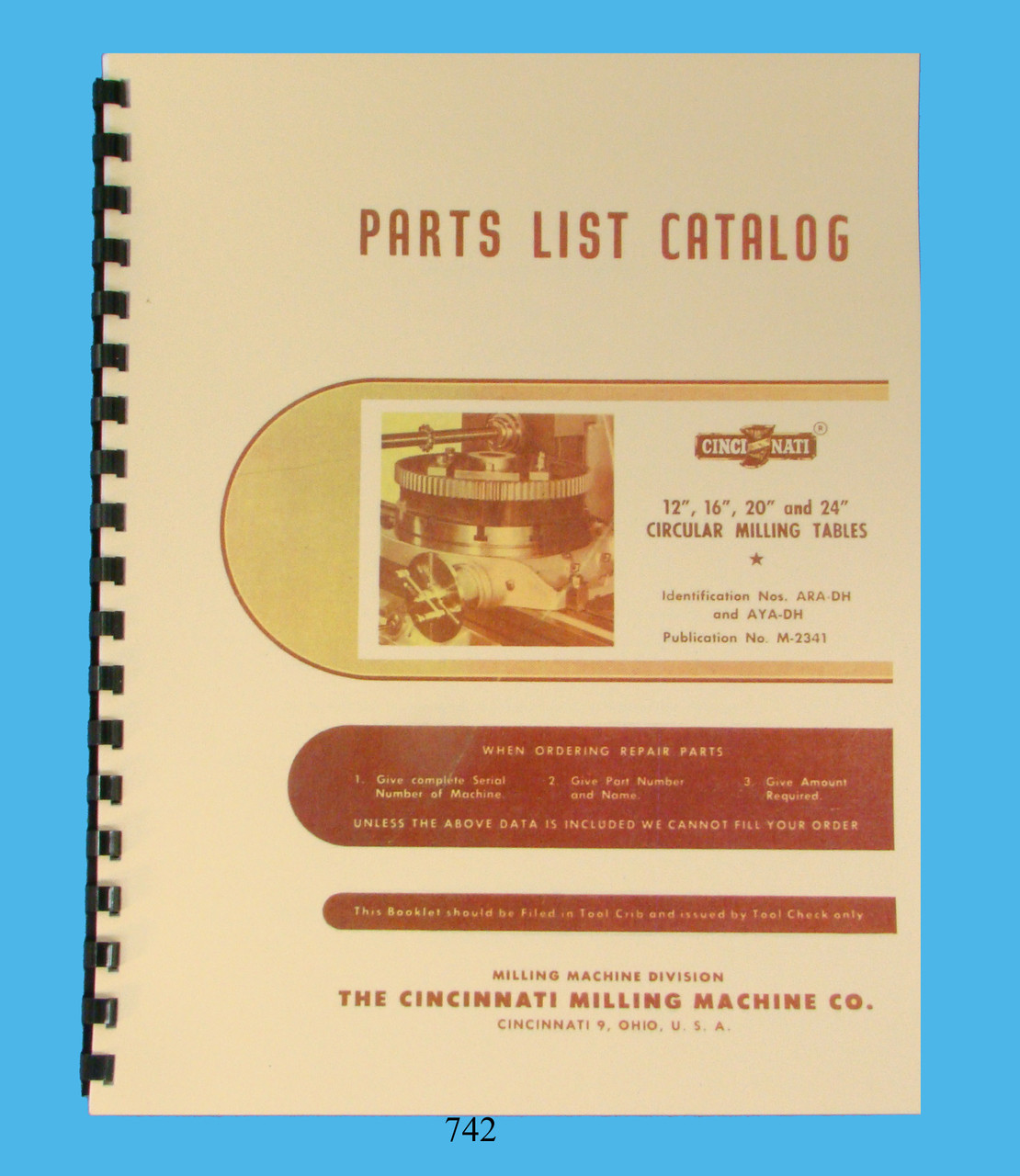

Description: This is a Parts List  Manual for the Cincinnati Circular Milling Tables Sizes 12" , 16" , 20" & 24".    It contains information on the Specifications, How to Set Up the Circular Milling Table, Index Tables for Standard Index Plates, Index Tables for High Number Index Plates, Table of Feed Rates, Adjustments, Exploded Parts Views and Parts List.   It  has 49 pages. To inspect the quality of the manual,  to view the Table of Contents, and to view select pages,  please click on the gallery images above to enlarge.

Includes sections on:

• Specifications
• How To Set Up the Circular Milling Table
• Dimensional Drawings
• Index Tables for Standard Index Plates
• Index Tables for High Number Index Plates
• Table of Feed Rates
• Adjustments
• Exploded Parts Views
• Parts List


Number of pages: Approx 49
Publication date: N/A
Publication No.:  M-2341
