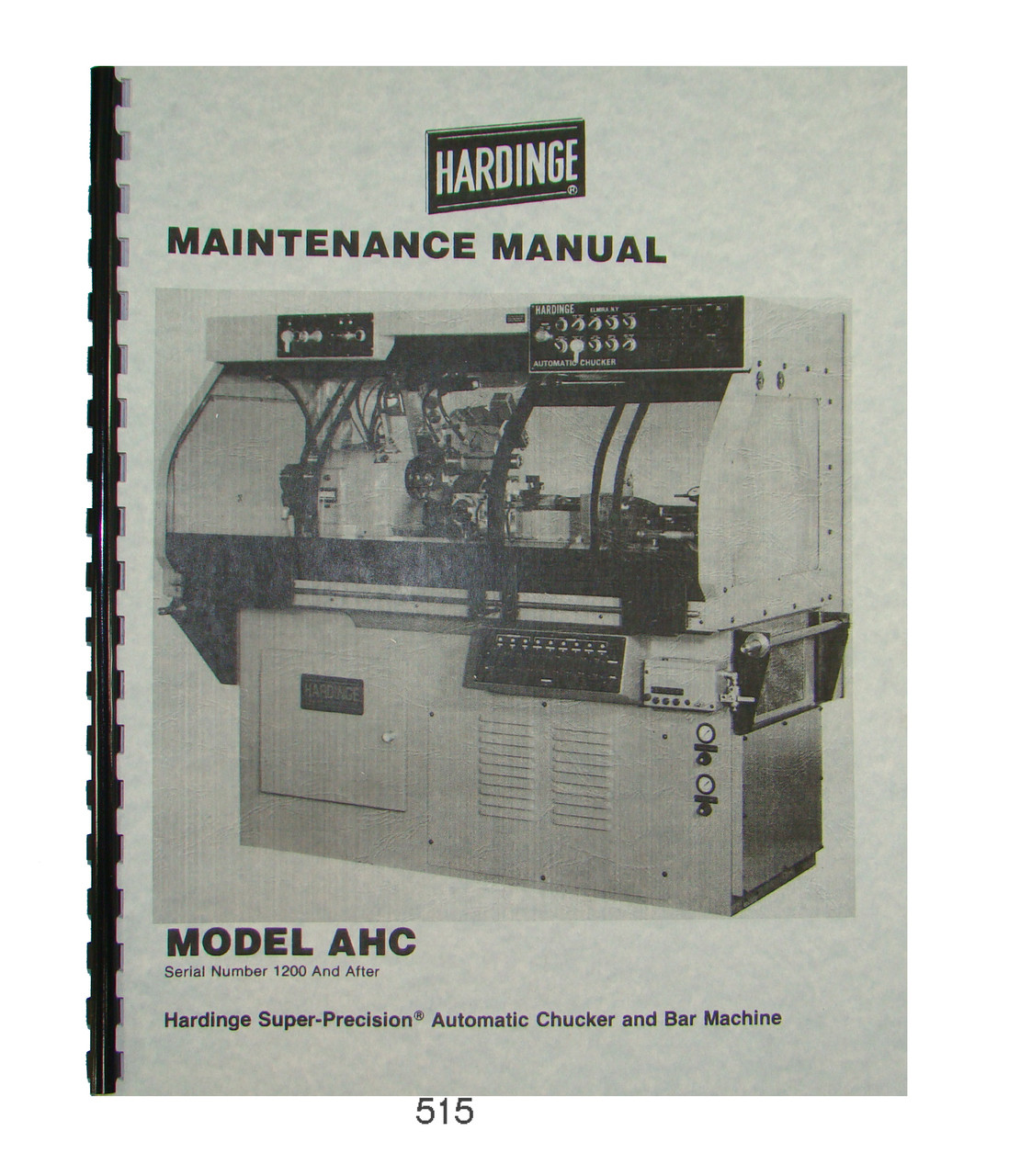

Hardinge AHC Automatic Chucker & Bar Machine
Maintenance Manual

For Models: AHC S/N's 1200 and after

Description: This is a Maintenance Manual for the Hardinge AHC Super-Precision Automatic Chucker and Bar Machine.    It is a comprehensive manual that covers Adjustments, Disassembly and Reassembly, Lubricants, Preventative Maintenance, and much more.  It contains 64 pages.  To see what all the manual covers, please view the Table of Contents above.  To inspect the quality of the manual,  and to view select pages, please click on the gallery images above.


Includes sections on

• Belts R&R
• Carriage R&R
• Clutch Adjustments
• Collet Closer

• Deep Hole Drill Unit R&R
• Gear Box R&R
• Lubricants
• Preventative Maintenance
• Switch Replacement
• Taper Attachment R&R
• Threading Attachment R&R
• TIming Sequence
• Turret & Cross Slide R&R
• Variable Speed
• Vertical Slide
• Much More, See Table of Contents Above

Number of Pages: Approx. 64
Publication Date: N/A
Publication No.: N/A

Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice.

About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.

Questions?
Email: eugene@fabersurplus.com
Phone: 316-210-4079 after 11:00 am Central Time
Please leave message as I may not hear the phone

Ships USPS First Class Free or
Upgrade to Priority Mail for faster delivery.

Reprinted from original manual using high quality 24lbpaper and comb binding. Covers are printed from 65lb cardstock for extra durability.
