For models: 5900

Note: Starting at S/N: 502260 & up

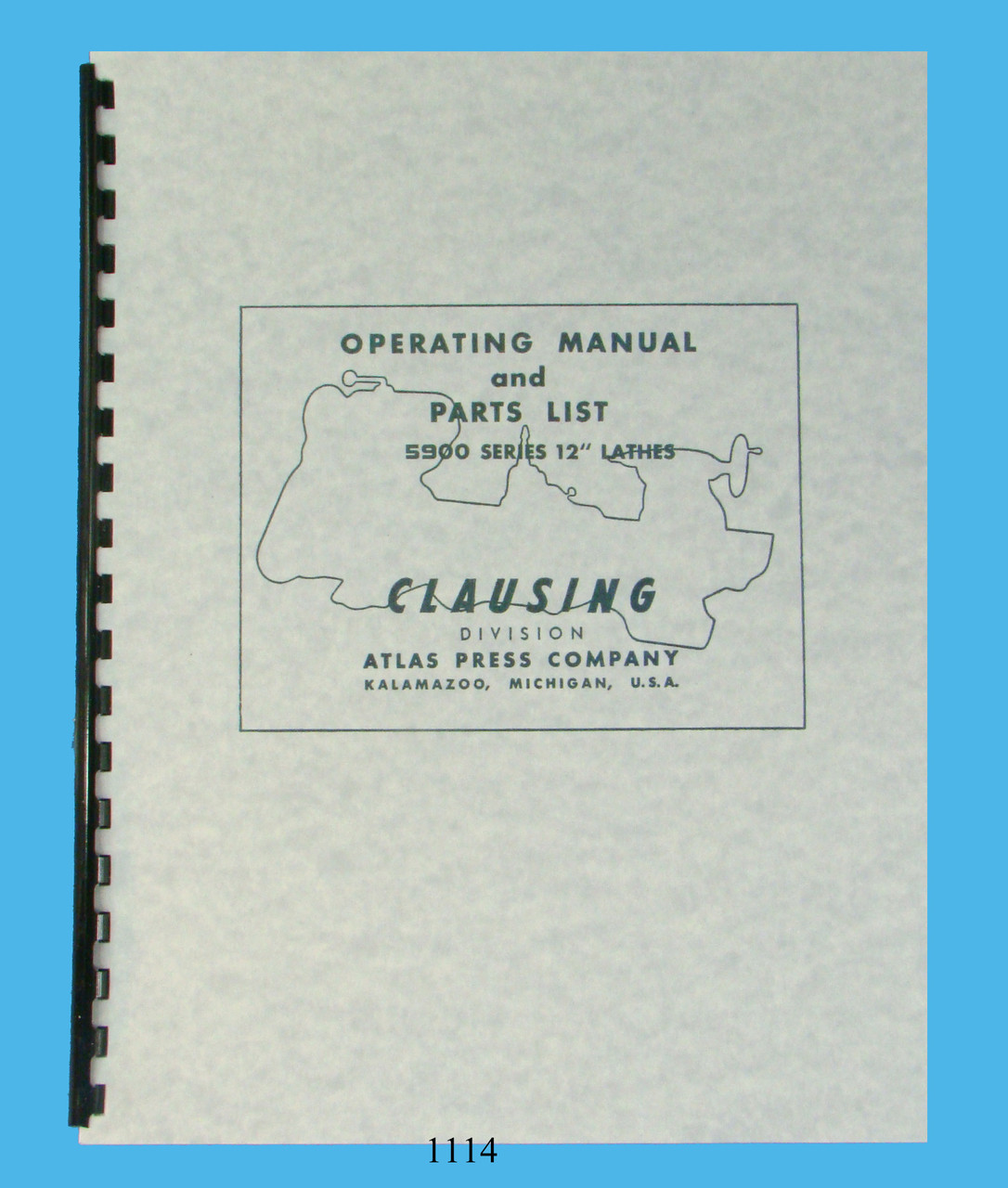

Description: This is a Service & Parts List Manual for the 12" Series 5900  Clausing Lathe  beginning with serial number 502260 and up. It has instructions on  operation, complete parts breakdown,  Maintenance, Lubrication, Drive belts, Timing Belt, & Adjustments.  Also included is a section on lathe attachments including the 7108 Follower Rest, the 7109 Steady Rest, the 7114 Telescopic Taper Attachment, 7118 Micro Carriage Stop, 7529 Thread Cutting Stop, the 7002 Milling attachment, and the 7651 Tool Post Grinder.  Wiring Diagrams are included, and also the Threading Chart for the lathe. There is a 12 page appendix included that covers thread cutting with the thread dimensions of various threads.  The manual has 54 pages.  To inspect the quality of the manual, to view the table of contents, and to view select pages,  please click on the gallery images above to enlarge.

Includes sections on:

• Operation
• Parts List & Breakdown

• Specifications
• Installation
• Servicing
• Maintenance
• Adjustments
• Lubrication Diagram
• Drive Belts

• Cylinder Removal & Replacement
• Section on Attachments
• Wiring Diagrams
• Threading Chart
• 60 Degree V-Type Thread Dimension Tables
• Thread Cutting Tables


Number of pages: Approx 54
Condition: Very Good
Publication date: July 1965
Publication No.:  5910-3

About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.

Added Notes: Due to competitors making copies of these manuals for resale, select pages have been lightly watermarked to discourage this practice.
