 Delta Ram Type Radial Drill Press

For models: 15-120, 15-111, 15-112, 15-113, 15-114, 15-115, 15-116, 15-117, 15-118, 15-119, 15-120, 15-121, 15-122, 15-123, & 15-124

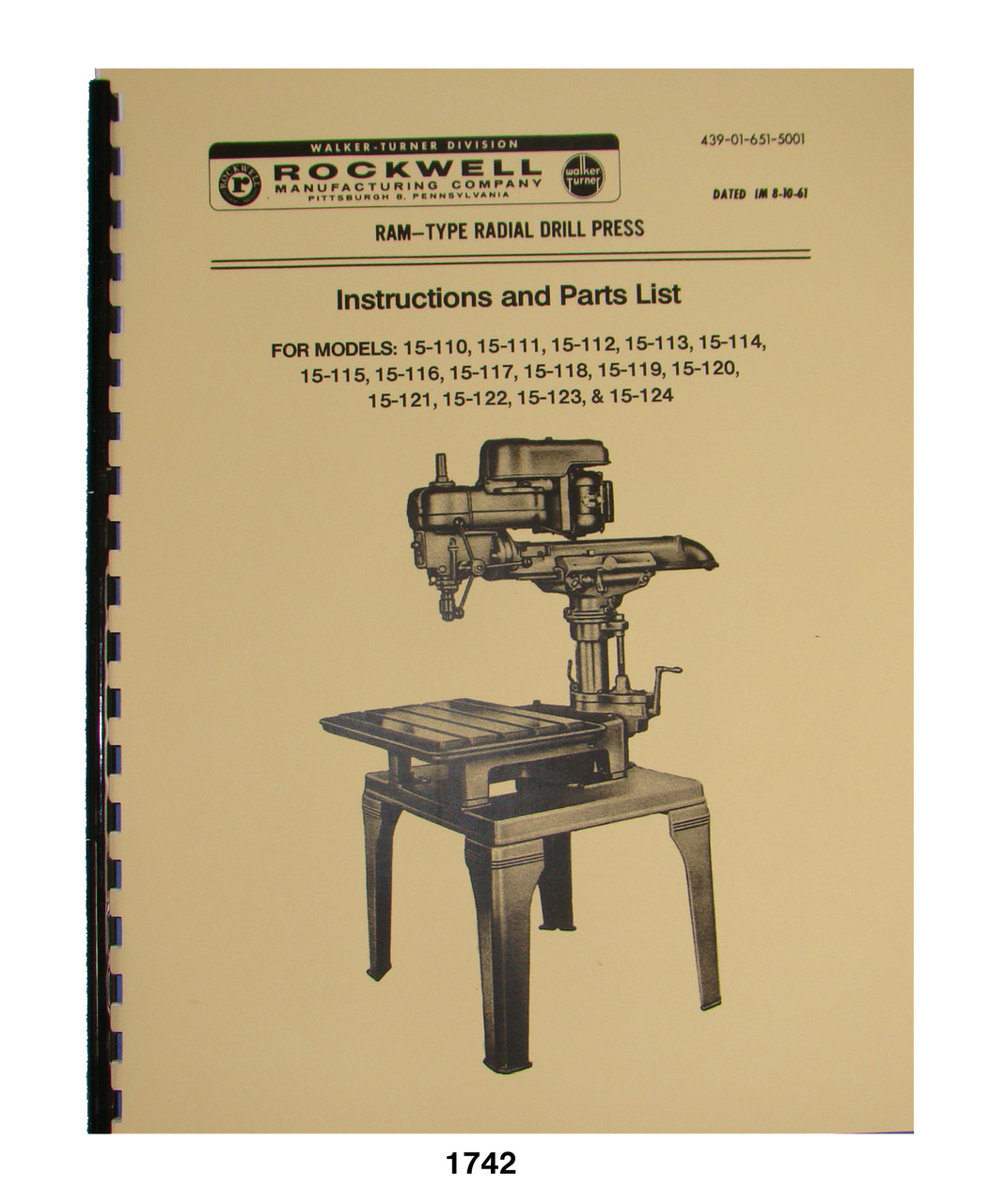

Description: This is an Instruction and  Parts List manual for the early model Delta Ram Type Radial Drill Press.   This manual is a combination of the original manual dated August 1961 with its operation and parts section and the operations part of a later manual dated 1985.  The later manual has a much better information on the operation and adjustments of the drill press. It has sections on: Operating Controls and Adjustments, Motor and Spindle Speeds, Adjusting Belt Tension, Spindle and Quill Adjustments, Ram Adjustments, and others.    It has 23 pages.  To inspect the quality of the manual,  and to view select pages,  please click on the gallery images above to enlarge.


Includes sections on:

• Assembly
• Electrical Connections
• Motor and Spindle Speeds
• Changing Spindle Speeds
• Adjusting Belt Tension
• Spindle and Quill Adjustments
• Drilling Holes to Depth
• Adjusting Spindle Return Spring
• Operating the Ram
• Tilting the Head
• Replacing Lower Jackshaft & Spindle Pulley Belt

• Adjusting Spindle Return Spring
• Accessories
• Parts List
• Exploded Parts Views


Number of pages: Approx 23
Publication date: Aug 10, 1961
Publication No.: 439-01-651-5001
Added Notes:  Due to others making copies of these manuals for resale,
                      I have lightly watermarked select pages to discourage this practice.

About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.
