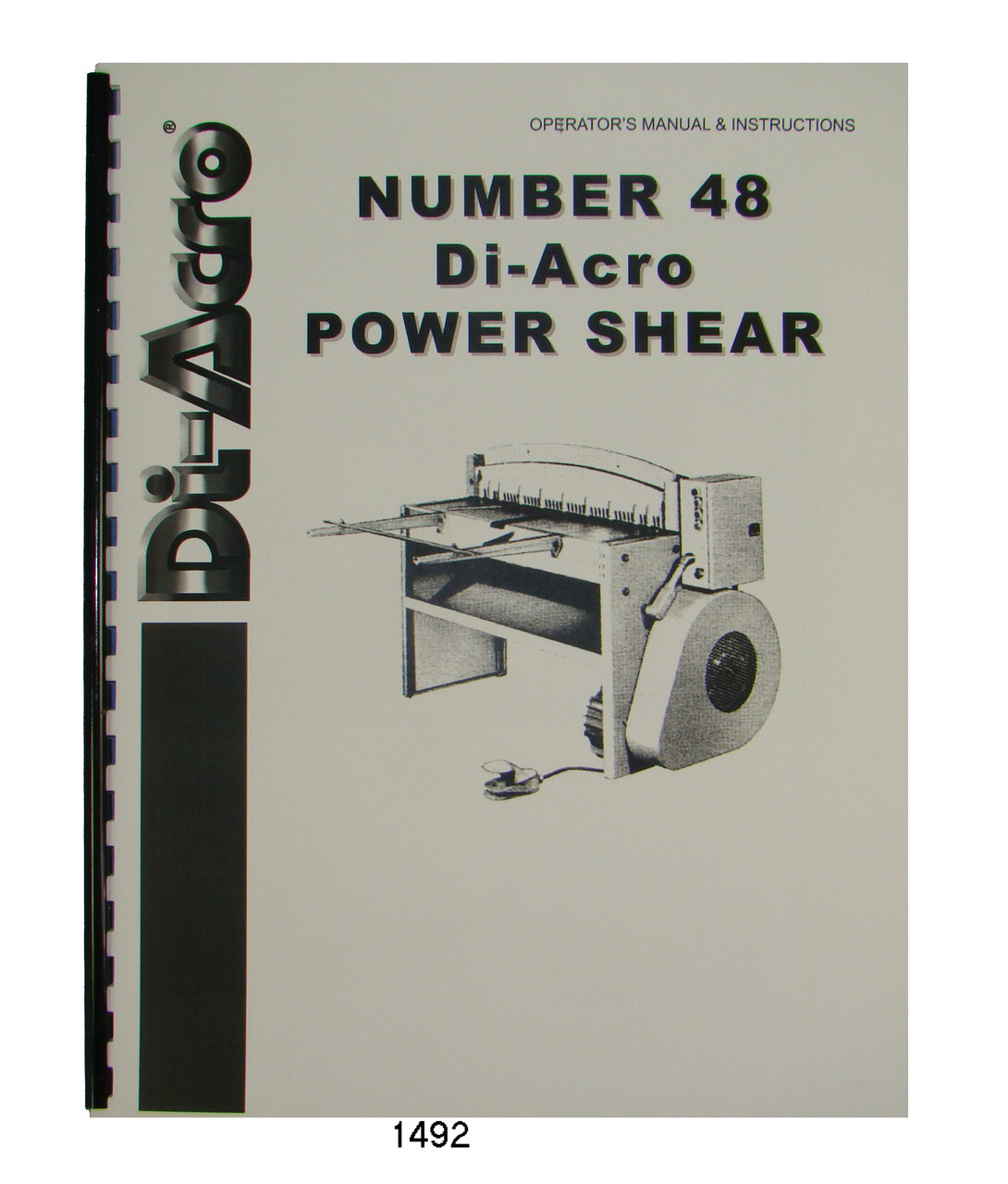

Di-Acro #48 Power Shear
Operator, Instruction, & Parts Manual

For models: No. 48

Description:This is an operators manual, instructions, and parts manual on using the Di-Acro model No. 2 Power Shear.  It covers the Operation, Adjustments, Troubleshooting, and Parts List and Views.  It has 20 pages.  To inspect the quality of the manual, to view the Table of Contents, and to view select pages,  please click on the gallery images above to enlarge.

Includes sections on:

• Leveling
• Wiring
• Operating Controls
• Adjusting Standard Material Gauges
• Adjusting Front Operated Material Gauge
• Adjusting Holddown Bar
• Lubrication
• Sharpening Blades
• Adjusting Blade Clearance
• Adjusting Brake
• Checking Clutch
• Adjusting Clearance of Ram Slides
• Troubleshooting
• Operation Tips
• Parts Views
• Parts Lists

Number of pages: Approx 20
Publication date: Apr, 2002
Publication No.:

Added Notes: Due to others making copies of these manuals for resale,
 I have lightly watermarked select pages to discourage this practice.

About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.
