For models: Compact 5

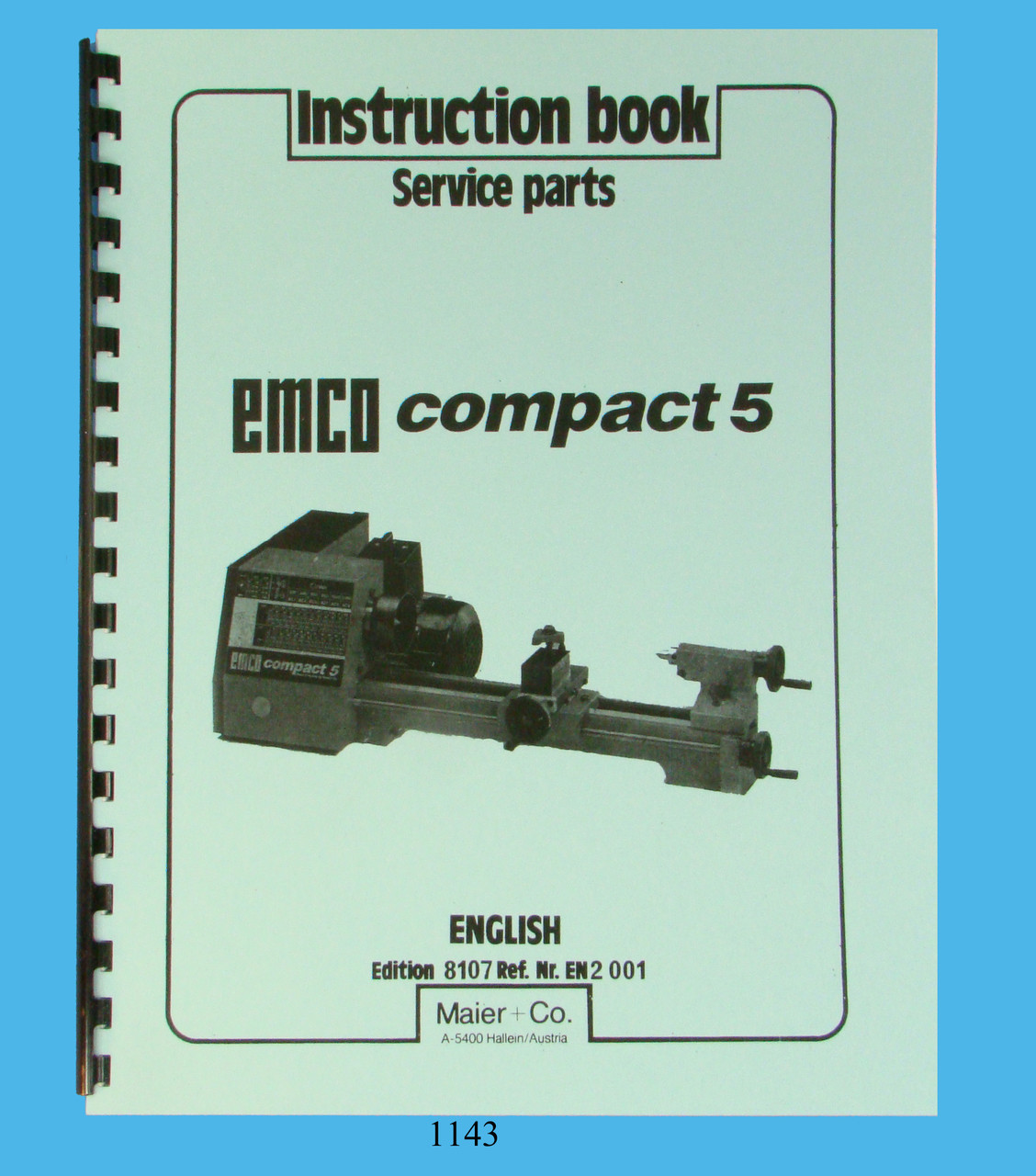

Description: This is an Instruction & Parts List Manual for the Emco Compact 5 Lathe. It has instructions on Setting Up the Machine, Design, Controls, & Operating Elements, Operation, Thread Cutting, Milling, Drilling, Dividing Attachment, Lubrication, Controls, Maintenance, Adjustments, and  Exploded Parts Views with Parts List .  The manual has 88 pages.  To inspect the quality of the manual, to view the table of contents, and to view select pages,  please click on the gallery images above to enlarge.

Includes sections on:

• Technical Data

• Lubrication
• Controls  and Operation
• Maintenance
• Adjustments
• Accessories
• Turning Tools
• Machine Set Up
• Turning Between Centers
• Clamping Devices
• Chucks
• Steady Rests
• Automatic Feed Mechanism
• Mounting the Gears
• Thread Pitches & Gear Combinations
• Troubleshooting Chart
• Drilling and Milling
• Wiring Diagram
• Parts List

• Exploded Parts Breakdown


Number of pages: Approx 88
Publication date: N/A
Publication No.:  N/A

About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.

Added Notes: Due to competitors making copies of these manuals for resale, pages have been lightly watermarked to discourage this practice.
