For models: Models 804 and 684

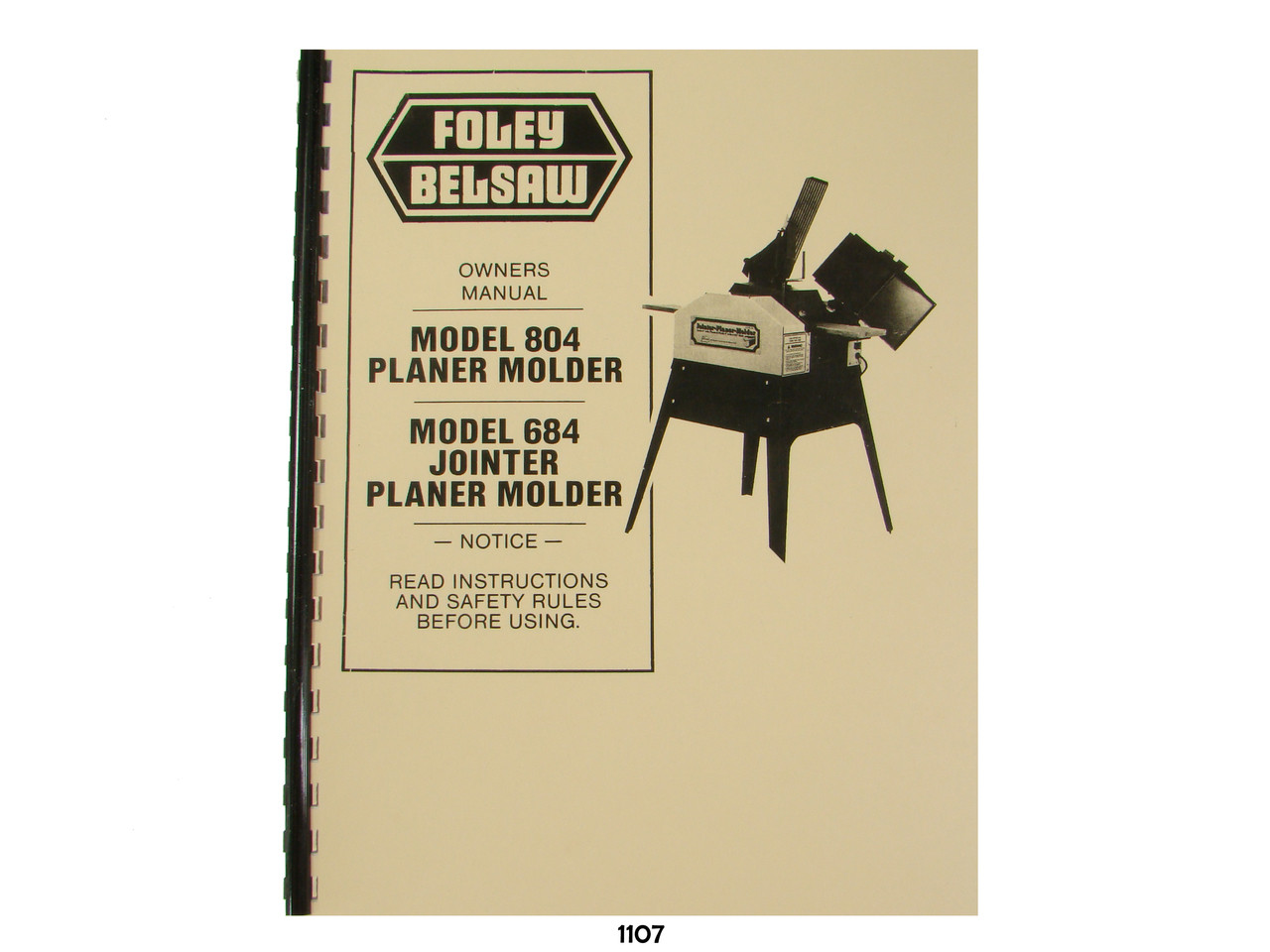

Description: This manual covers the Foley Belsaw Models 804 Planer Molder and Model 684 Jointer Planer Molder.   It has sections on:  Operating Instructions, Knife Maintenance & Sharpening, Installation of Molding Custom Pattern Knives, Molding Operations, Parting Bits, Lubrication, Adjustments, Exploded Parts view and Parts Price List, and much more.   It has 48 pages.   To inspect the quality of the manual, to view the table of contents, and to view select pages,  please click on the gallery images above to enlarge.


Includes sections on:

• Specifications
• Optional Accessory Items
• Installation
• Jointing
• Jointing Controls
• Jointing Operations
• Knife Maintenance
• Sharpening Jointer/Planer Blades
• Planing Instructions and Operations
• Molding
• Custom Pattern Knives
• Setting Up For Molding
• Special Guides for Molding Cuts
• Edge Molding
• Installation Of Molding Custom Pattern Knives
• Installation Of Molding Cutter Bits
• Special Molding Applications
• Lubrication
• Exploded Parts View
• Parts List
• And Much More

Number of pages: Approx 48
Condition of original:   Very Good
Publication date:N/A
Publication No.: N/A

About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.

Added Notes: Due to others making copies of these manuals for resale,I have lightly watermarked select pages to discourage this practice.

Questions?
Email: eugene@fabersurplus.com
Phone: 316-210-4079 after 11:00 am Central Time

Ships USPS First Class Free or
Upgrade to Priority Mail for faster delivery.

Reprinted from original manual using high quality 24lb
paper and comb binding.

Covers are printed from 65lb cardstock for extra durability.

Sales tax charged for Kansas sales.
