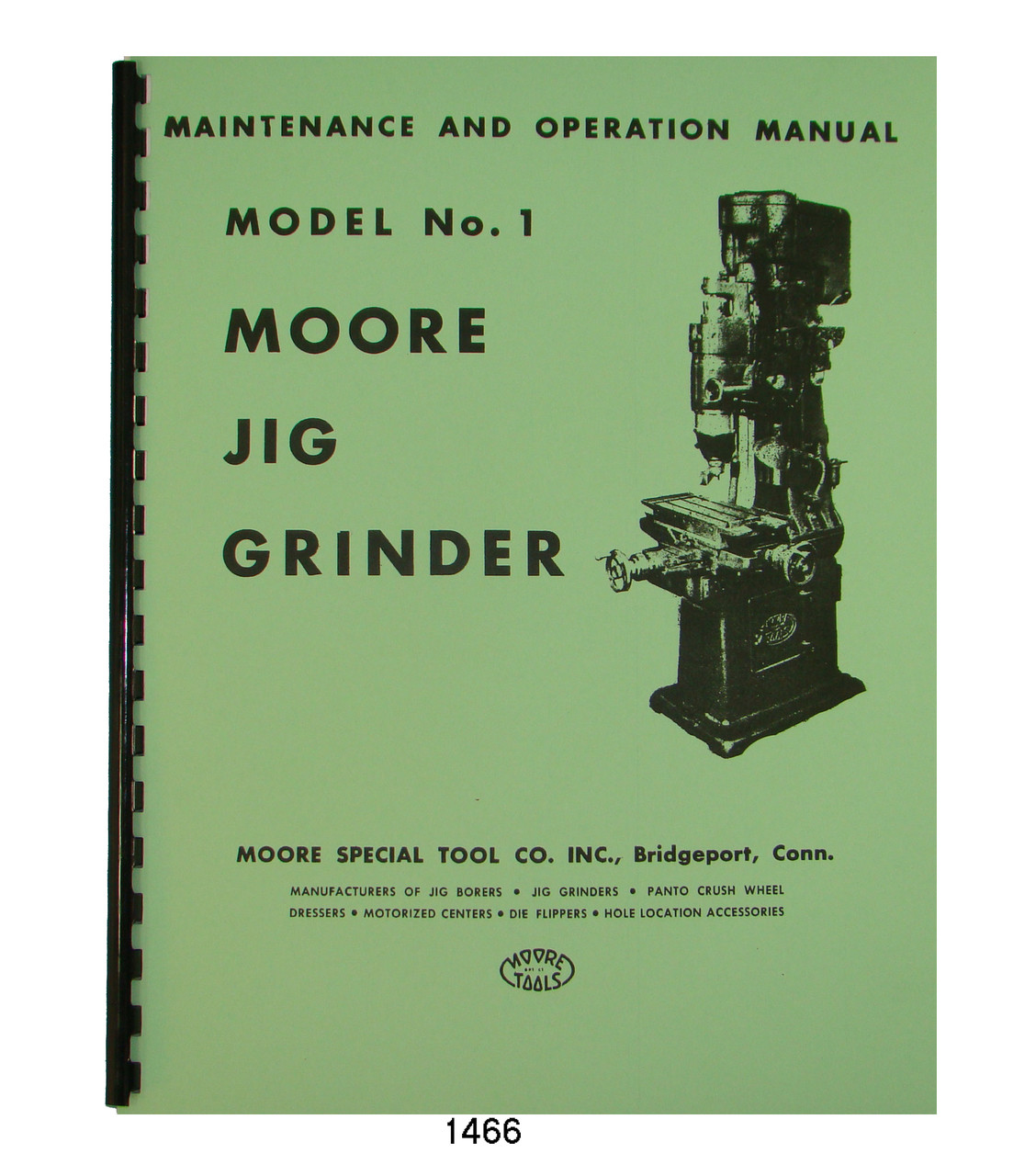

Moore #1 Jig Grinder
Maintenance, Operation, & Parts Manual

For Models: #1

Description: This manual is a Maintenance, Operation, & Parts Manual for the Moore #1 Jig Grinder.   It covers Setting Up the Grinder, Adjustments, Operations, Lubrication, and a Complete Parts Section with Exploded Views and Part Numbers.  It has 50 pages  To view the Table of Contents, to inspect the quality of the manual,  and to view select pages, please click on the gallery images above.


Includes sections on

• Setting Up
• Speed Pressure Ratios
• Adjustment
• Operation
• Attaching Grinding Heads
• Work Setup
• Use of Coordinate System
• Depth Measuring
• Use of Rotary Table
• Lubrication

• Parts Breakdown Diagrams
• Parts List

Number of Pages: Approx. 50
Publication Date: N/A
Publication No.: N/A

Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice.

About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.

Questions?
Email: eugene@fabersurplus.com
Phone: 316-210-4079 after 11:00 am Central Time
Please leave message as I may not hear the phone

Ships USPS First Class Free or
Upgrade to Priority Mail for faster delivery.

Reprinted from original manual using high quality 24lbpaper and comb binding. Covers are printed from 65lb cardstock for extra durability.
