Pries Panto Engravers
Operating and Parts List Manual

For Models: All

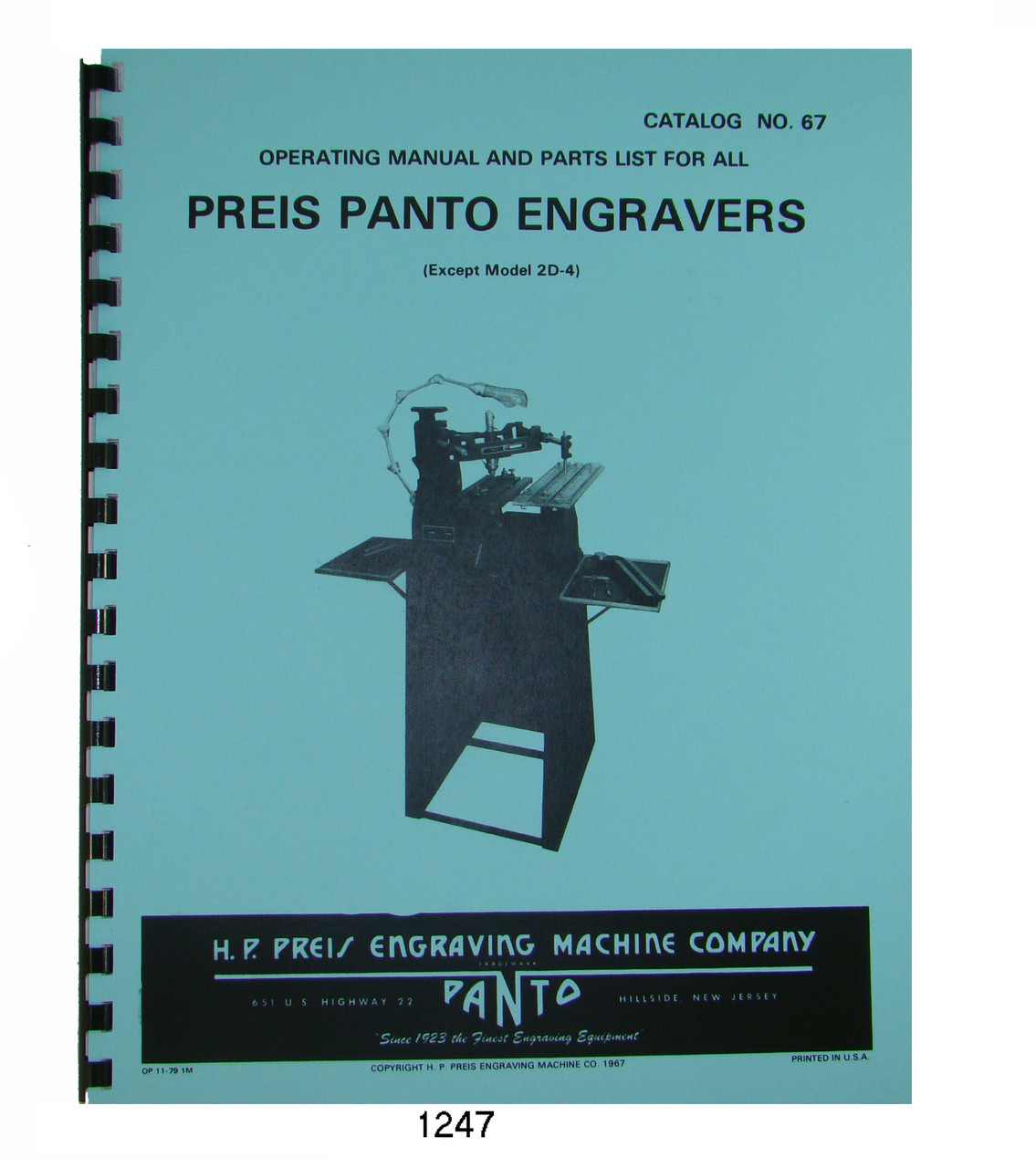

Description: This manual covers Operating Instructions and Parts Lists for all Pries Panto Engravers.   It covers General Instructions, Ratio Charts, Simple Procedures, Holding Fixtures,  Instructions for Different Models, and Parts Lists for all models.    To view the Table of Contents, to inspect the quality of the manual,  and to view select pages, please click on the gallery images above.


Includes sections on

• Assembly
• General Instructions
• Pantograph Ratio Chart
• Simple Procedures
• Holding Fixtures
• Right and Wrong Methods
• Pantograph Parts
• Instructions for Diamond Drag Marking
• Instructions for Electrical Marking
• Instruction for UE-2 Spindle
• Motor Drive & Belt Connecting Parts
• Area Chart ( Full Scale)
• Instruction for UE-3 Spindle
• Instruction for Drill Unit
• 3D-5 Pantograph Carrier Assembly
• Instructions for Three Dimensional
• Instructions for UM-PC Spindle
• Instructions for UE3-PC
• Introductions to Engraving
• Pantograph Ration Chart


Number of Pages: Approx. 45
Publication Date: 1967
Publication No.: 67

Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice.

About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.
