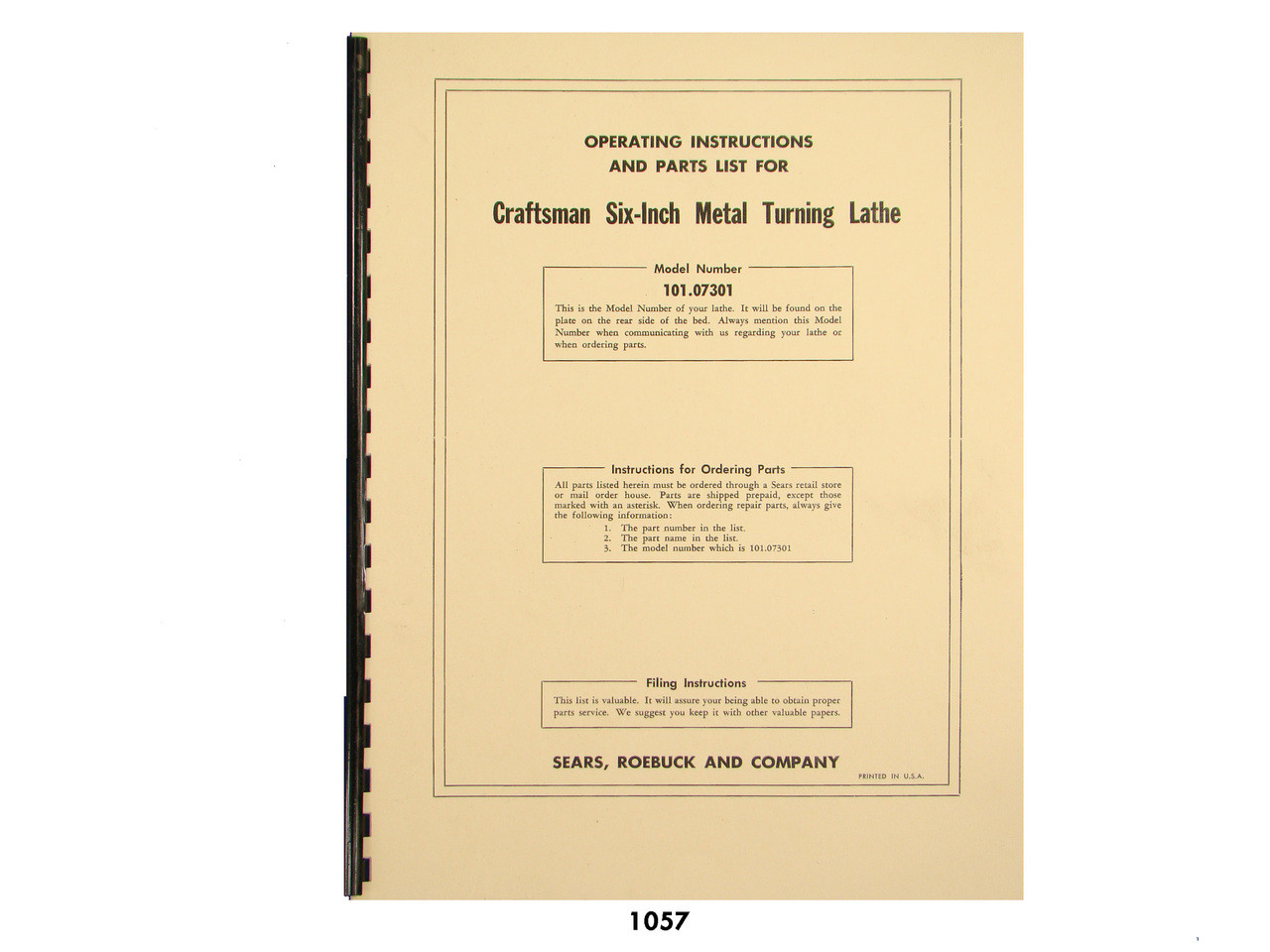

Sears Craftsman 6" Metal Lathe 101.07301
 Operating Manual & Parts List Catalog



For models: 101.21200

Description: This is a Operating Instruction & Parts List Manual for the Sears 6" Lathe model 101.21200.  It has sections on: Operation and Controls, Adjustments, Proper Cutting Speeds, Reading the Gear Chart, Mounting the Work, Cutting Tool Bits, Setting the Tool to the Work, Rules For The Use of the Threading Dial, and Lubrication Chart.  It also shows the Parts and Parts Lists.   It has 4 pages.  It is written in small type originally and would normally cover about 8 pages.  To inspect the quality of the manual,  and to view select pages,  please click on the gallery images above to enlarge.


Includes sections on:

• Operation and Controls
• Adjustments
• Proper Cutting Speeds
• Reading the Gear Chart
• Mounting the Work
• Cutting Tool Bits
• Setting The Tool To The Work
• Indexing
• Threading
• Rules For The Use of The Threading Dial
• Lubrication Chart
• Parts Outlines
• Parts List

Number of pages: Approx 4
Condition of original:   Very Good
Publication date: N/A
Publication No.: N/A

Added Notes:   Due to others making copies of these manuals for resale, I have lightly watermarked select pages to discourage this practice.

About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.

Questions?
Email: eugene@fabersurplus.com
Phone: 316-210-4079 after 11:00 am Central Time

Ships USPS First Class Free or
Upgrade to Priority Mail for faster delivery.

Reprinted from original manual using high quality 24lb
paper and comb binding.

Covers are printed from 65lb cardstock for extra durability.

Sales tax charged for Kansas sales.
