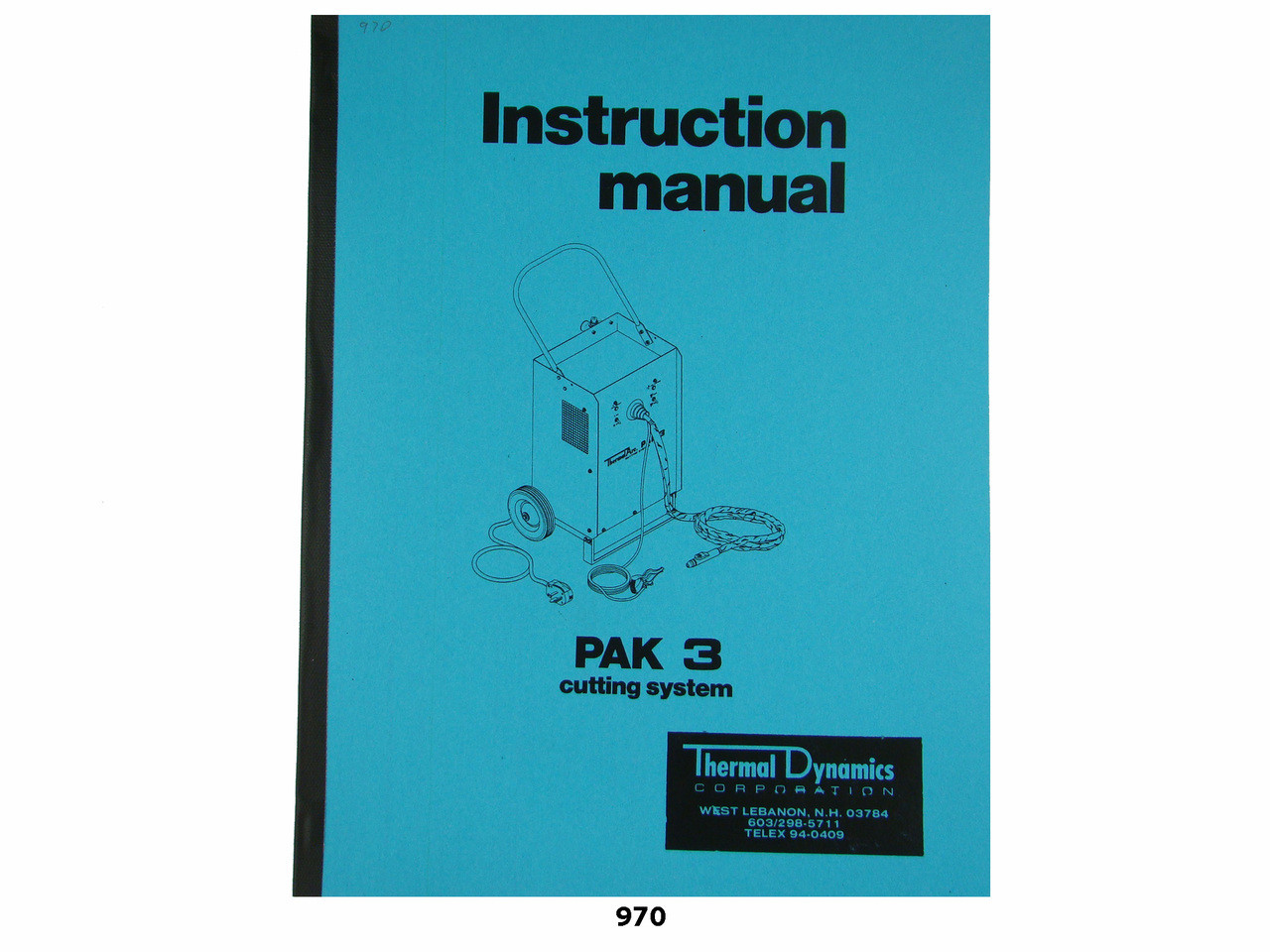

Thermal Dynamics PAK 3 Plasma Cutter

Instruction  Manual

For models: Pak 3

Description: This is an Instruction Manual for the model PAK 3plasma cutter. It has instructions on  servicing,  operating instructions, installation, troubleshooting, test procedures, wiring diagram,  and parts breakdown. The manual has 39 pages.  To inspect the quality of the manual, view the table of contents, and to view select pages,  please click on the gallery images above to enlarge.

Note: This manual does cover the torch operation or servicing.

Includes sections on:

• Operating Instructions

• Test Procedures

• Parts Lists
• Servicing

• Troubleshooting Charts
• Wiring Diagram
• Torch Maintenance


Number of pages: Approx 39
Condition: Very Good
Publication date: 1985
Publication No.:  0-0516
Added Notes:

About This Manual:    This manual is from a dealer that sold out the new old stock they no longer needed.
