For models: DH

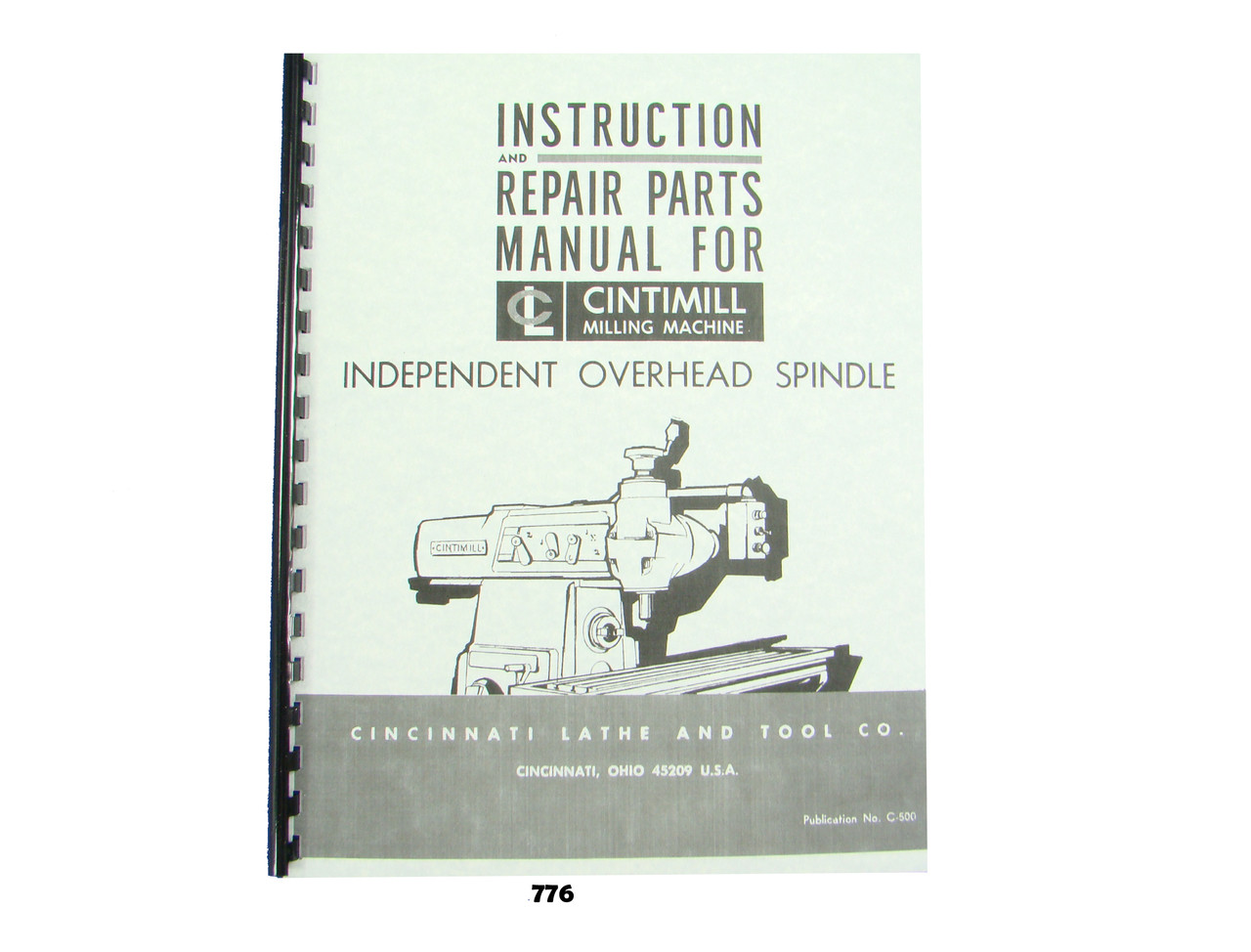

Description: This is an Instruction and Repair Parts List Manual for the Cincinnati Independent Overhead Spindle as used on the Cintimill machines. It has sections on: Lubrication, Dismantling, Functional Diagrams, Optional Hand Quill Feed, & Repair Parts Section with Exploded Parts Views. The manual has 19 pages. To inspect the quality of the manual, to view the table of contents, and to view select pages, please click on the gallery images above to enlarge.

Includes sections on:

• Functional Diagrams
• Dimensional Drawings
• Lubrication
• Optional Hand Quill Feed
• Dismantling
• Repair Parts List
• Exploded Parts Views


Number of pages: Approx 19
Publication date: n/a
Publication No.:  C-500
