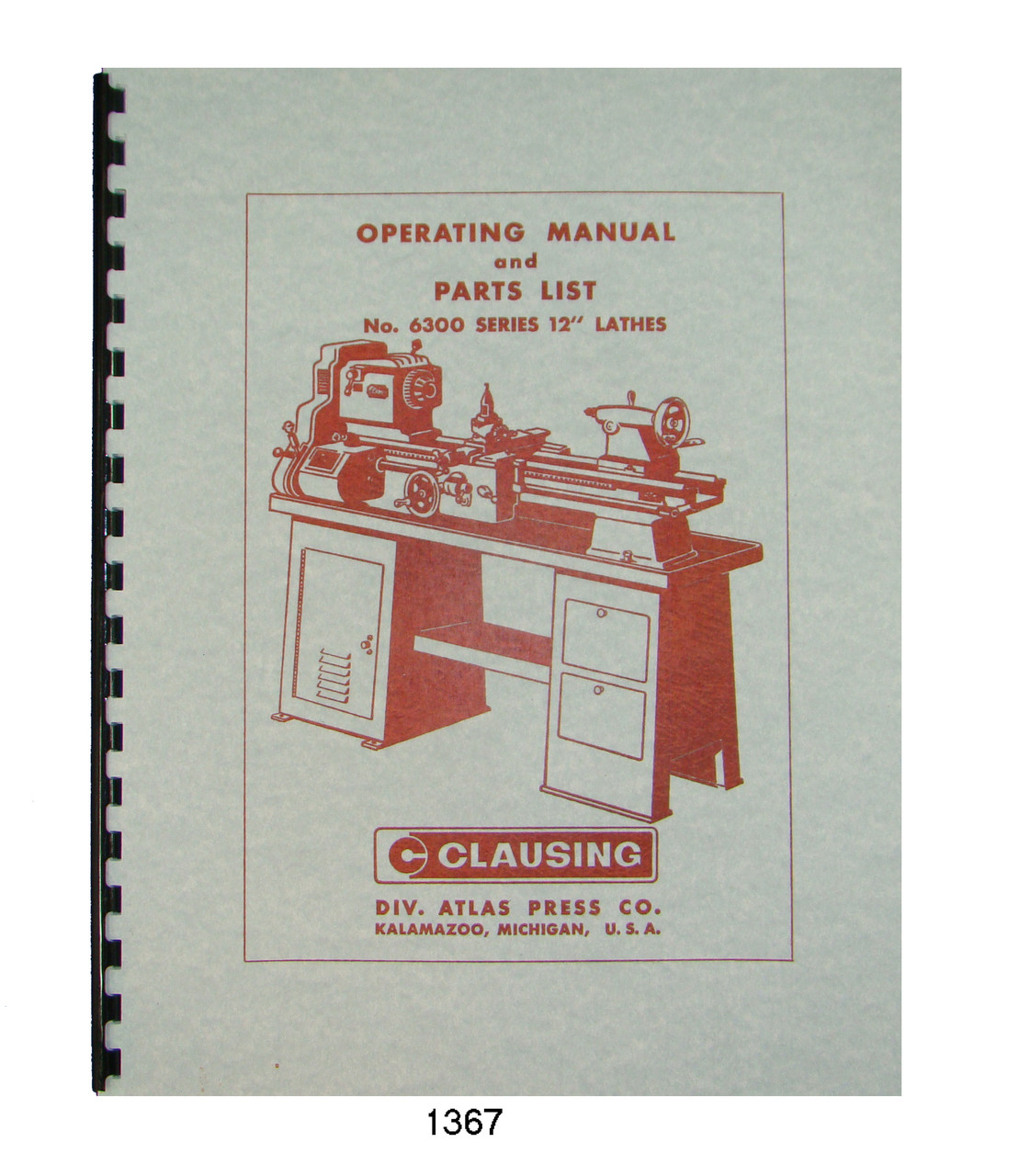

Clausing 12" Lathe 6300 Series

  Operating Instruction & Parts Manual

For models:12" 6300 Series s/n: 502260 and up

Description:
This is an Operating Instruction and Parts List Manual for the Clausing 12" Lathe 6300 series. It has instructions on how to level the lathe, control functions and operation, carriage feed chart, and service and belt adjustments. It also has instructions for lubrication. It contains a complete parts list with assembly breakdown drawings including the variable drive assembly. It is dated 1960 and has 31 pages. To inspect the quality of the manual, and to view select pages,  please click on the gallery images above to enlarge.

Includes sections on:

• Operating Instructions
• Control Operation
• Lubrication

• Feed Chart
• Service and Belt Adjustments
• Assembly Breakdown Drawings
• Parts List


Number of pages: Approx 31

Publication date: March 1960
Publication No.:  6300-8
Added Notes:

About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.

Questions?
Email: eugene@fabersurplus.com
Phone: 316-210-4079 after 11:00 am Central Time

Ships USPS First Class Free or
Upgrade to Priority Mail for faster delivery.

Reprinted from original manual using high quality 24lb
paper and comb binding.

Covers are printed from 65lb cardstock for extra durability.

Sales tax charged for Kansas sales.
