For models: 13"x 24" and 13"x 36" Lathes

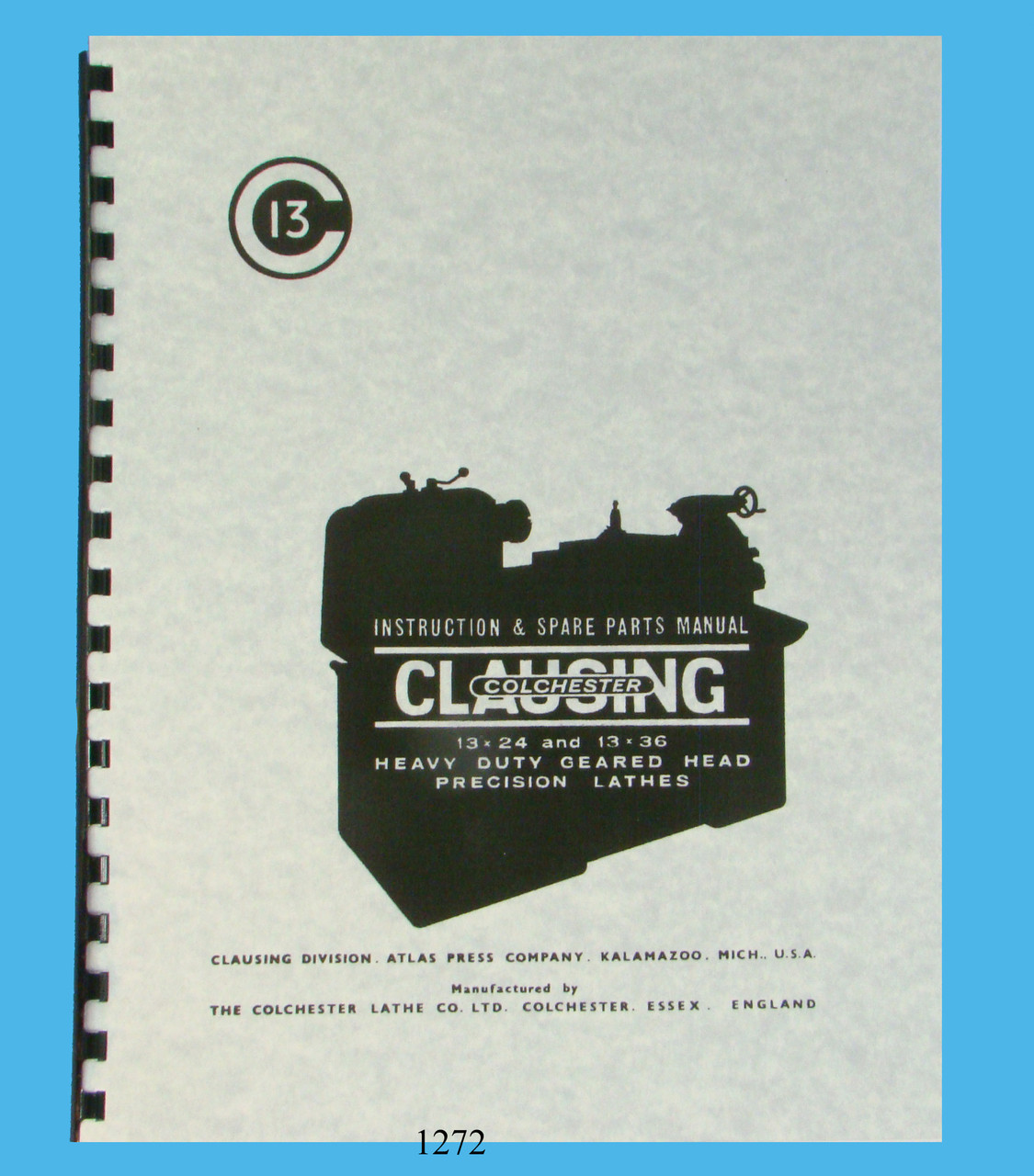

Description: This is an Operation, and  Parts List Manual for the Clausing Colchester 13"x 24" & 13"x36" Geared Head Lathe.  It contains instructions on the Installation, Operation, Lubrication, Thread Chart, Speed Chart,  Carriage Feed Chart, Wiring Diagram, Accessories, Hydraulic Profiler, Parts Lists, and Exploded Parts Views.  The manual has 82 pages.  To inspect the quality of the manual, to view the Table of Contents,  and to view select pages,  please click on the gallery images above to enlarge.

Includes sections on:

• Installation
• Operation
• Lubrication
• Specifications
• Electric Control Panel Assembly
• Wiring Diagram
• Spindle Speeds Chart
• Thread Feed Chart
• Metric Thread Cutting

• Metric Thread Cutting Chart
• Accessories
• Hydraulic Profiler

• Parts List

• Exploded Parts Views


Number of pages: Approx 82
Publication date: N/A
Publication No.:  N/A

About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.

Added Notes: Due to competitors making copies of these manuals for resale, pages have been lightly watermarked to discourage this practice.
