For models: Gorton 2-30

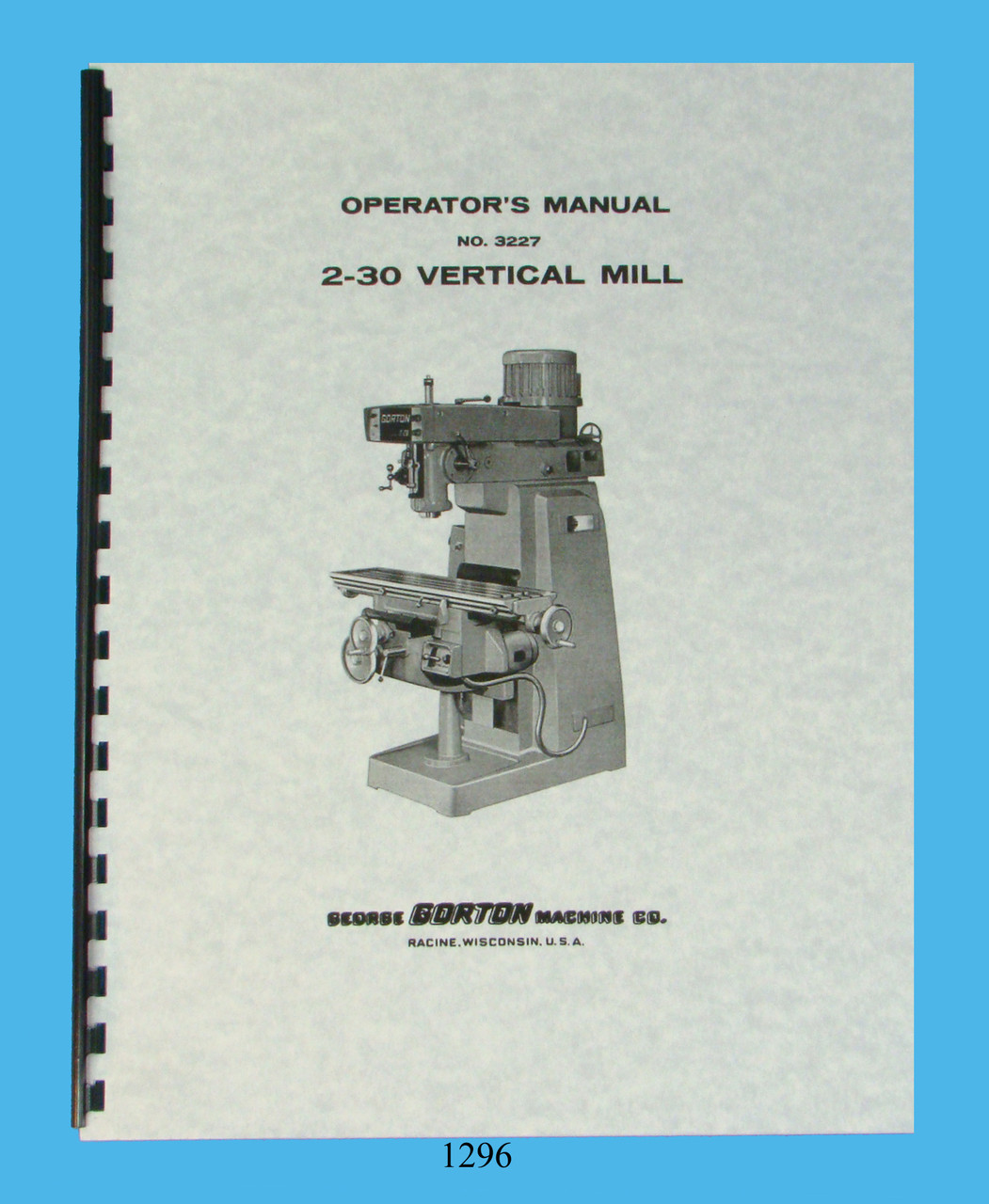

Description: This is an Operators Manual for the Gorton Model 2-30 Vertical Milling Machine.  It contains sections on Machine Nomenclature, Lubrication,  Description of Controls,  Adjustments, Operator Tips, Speeds and Feeds, Speed Chart, Cutting Chart, and a Causes of Milling Problems Chart.  It has a complete set of exploded pictorial parts views and parts list.  The manual has 21 pages.   To inspect the quality of the manual, view the table of contents,  and to view select pages,  please click on the gallery images above to enlarge.

Includes sections on:

• Machine Specifications
• Dimensional Drawings
• Spindle Noses
• Installation
• Lubrication
• Description of Controls
• Setup Procedure
• Gib Adjustment
• Adjust Table Limit Switch Dogs
• Adjust Table Limit Switches
• Adjust Hydraulic Pump Volume & Pressure
• Adjust Pressure Relief Valve
• Regulate Hydraulic Fluid Pressure
• Maintenance
• Replacing Vari-Speed Belt
• Cleaning Filter Elements
• Exploded Parts Views
• Repair Parts Lists


Number of pages: Approx 21
Publication date: N/A
Publication No.: 3227

About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.

Added Notes:   Due to others making copies of these manuals for resale, I have lightly watermarked select pages to discourage this practice.
