John Deere Magneto Service Manual Edison, Wico, Fairbanks Morse *910
Price:
$17.50
SKU:
910
Brand:
Availability:
Ships within one business day
Shipping:
Free Shipping
Product Description

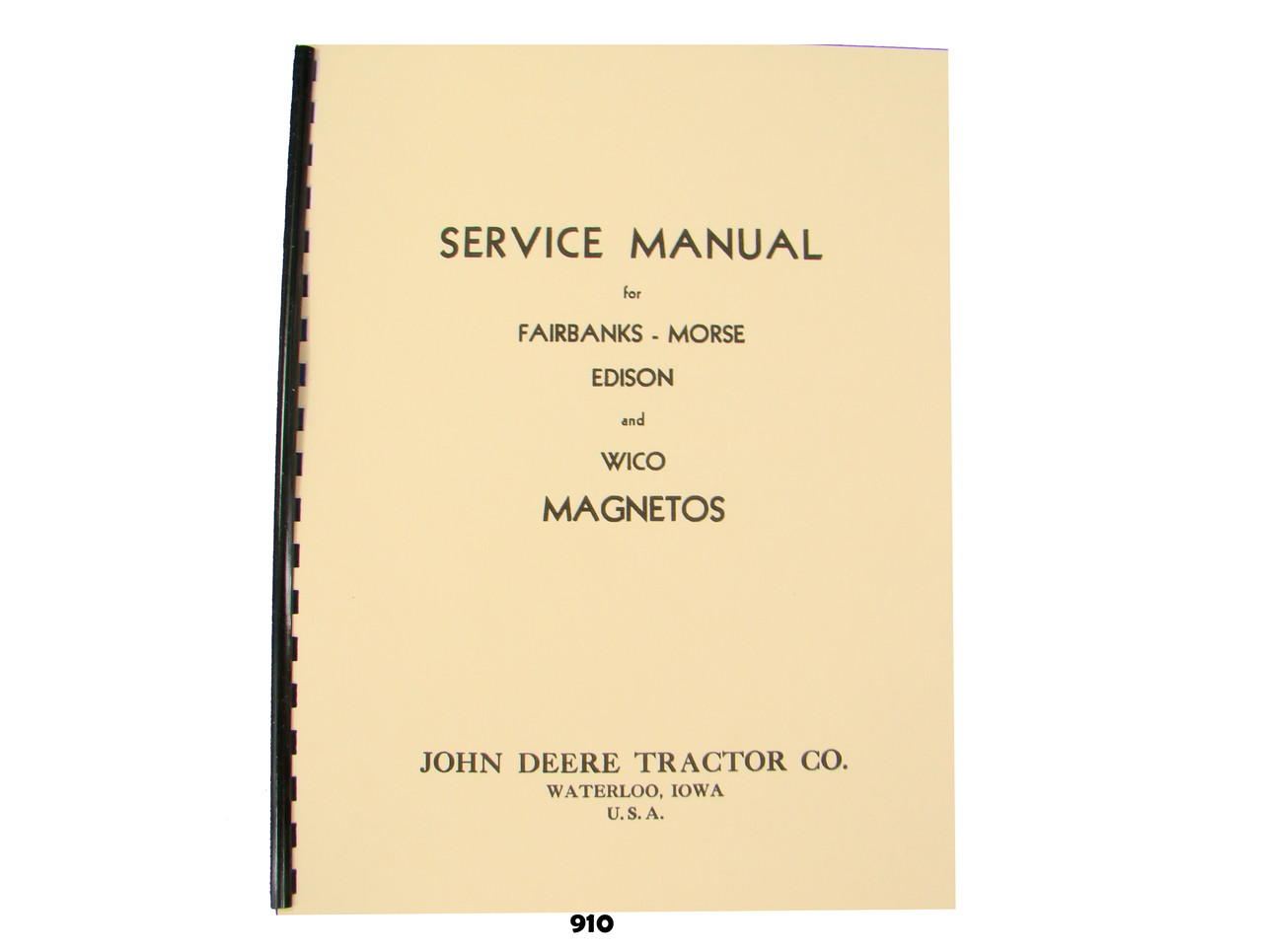

John Deere Magneto Service Manual
Fairbanks Morse, Edison, & Wico Magnetos
as used on John Deere Tractors and Equipment
Instruction, Testing, & Maintenance
Description: This is a high quality scanned reproduction of the manual put out by the John Deere company for its dealers. While it isn't the complete information given to the John Deere dealers, it is a condensed version covering the main servicing points. It covers Fairbanks Morse, Edison Type CD, and Wico Type AP and C Magnetos. It includes information on mounting the magnetos to the test stand, Testing the Magnetos, Breaker Point Information and Settings, Distributor Rotor, Condensor, Coil, Rotor Bearings, Lubrication, Gears. Oil Seals, Magnets, Impulse Couplings, and more. This manual is a nice addition to have with the specific parts and instruction manuals for each magneto. It covers things to look for that the official dealer information does not cover. It is as if it was written by a John Deere magneto mechanic that put down tips and things to look for in booklet form. See my other listings for manuals for the specific magnetos. This manual has 16 pages. To inspect the quality, and to view select pages, please click on the gallery images above.
For John Deere Magneto Types: Fairbanks Morse, Edison CD, & Wico AP & Type C.
Includes sections on:
Fairbanks Morse Magneto:
- Preliminary Test
- Magneto Cover with Brush Holders
- Magneto Breaker Points
- Distributor Rotor
- Condenser
- Distributor Rotor Bearings
- Magneto Rotor Bearings
- Lubrication
- Impulse Starter Assembly
Edison Type CD Magneto:
- Preliminary Test
- Distributor
- Breaker Points
- Timing Gears
- Front Cover
- Distributor Gear and Camshaft
- Distributor Bearing
- Condenser
- Pinion
- Impulse and Oil Seal
- Rotor
- Rotor Bearings
- Magnet
Wico Type AP Magneto:
- Preliminary Test
- The Distributor
- Cover Assembly
- Breaker Points
- Coil and Coil Core
- Condenser
- Condenser Lead Wire
- Gear Housing
- Cam and Distributor
- Pinion and Oiling Disc
- Lubricating Pads and Oil Scraper
- Impulse Coupling
- End Plate, Stop Ring and Oil Seal
- Rotor
- Bearings
Wico Type C Magneto:
- Preliminary Test
- Distributor
- Breaker Points
- Condenser
- Cover
- Coil and Coil Core
- Impulse Assembly
- Impulse Stop Group
- Oiling Disc and Lubrication Pads
- Rotor
- Rotor Bushings
- Main Housing
Number of pages: Approx 16
Publication No.: N/A
Publication date: N/A
Added Notes: Due to others making copies of these for resale, I have lightly watermarked select pages to discourage this practice.
