Merc-O-Tronic Ignition Analyzer Model 98
  Operation and Data Manual

For models: 98

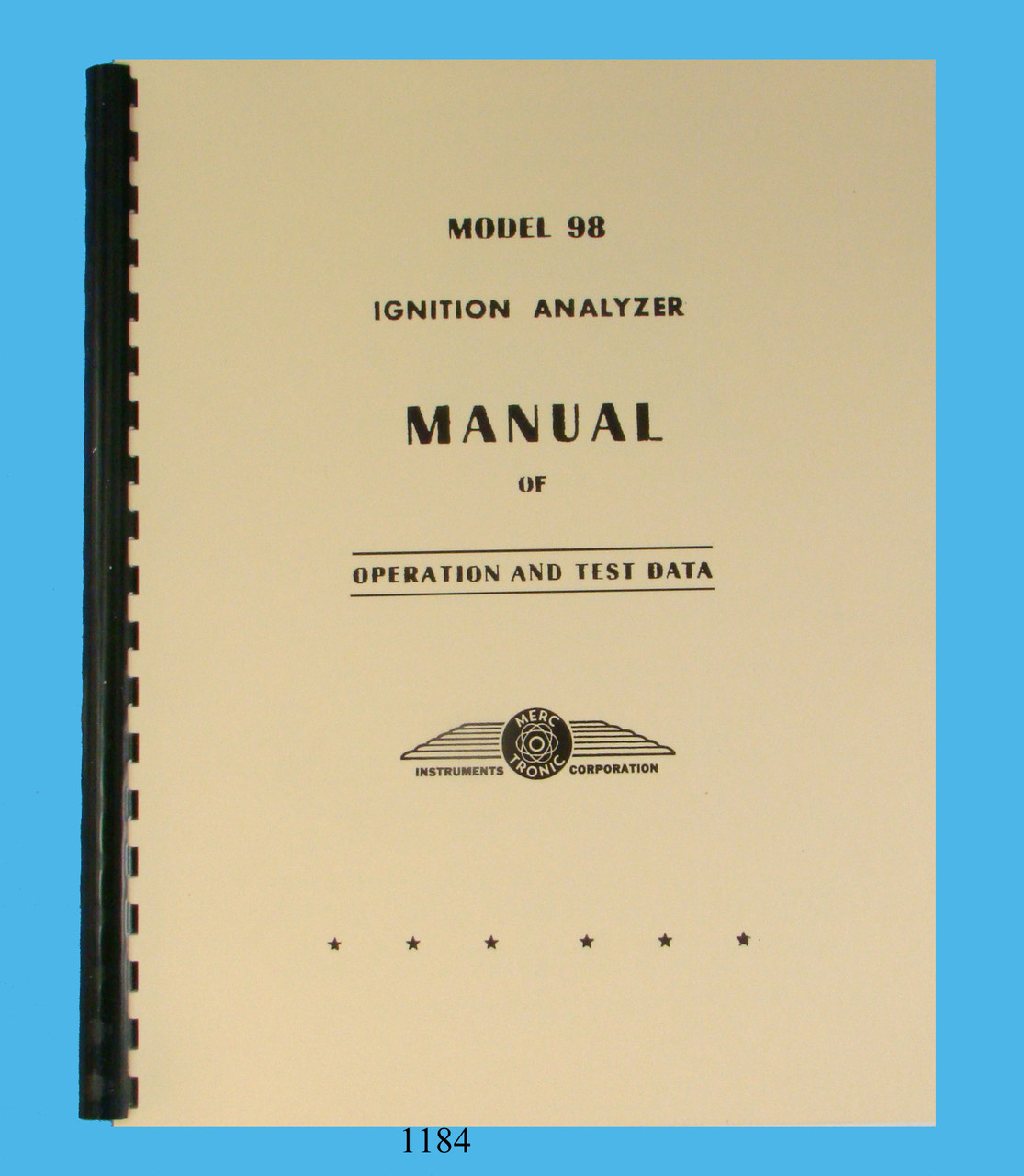

Description:  This is the latest 1978 revision of  an Operation and Test Data Manual for the Merc-O-Tronic  Model 98 Ignition Analyzer.  These analyzers were produced into the 1970's and were widely used for testing ignition coils, condensers, diodes, armatures, field windings, selenium rectifiers, timing, etc. on Magnetos, Lawn Mowers, Tractors, Automotive, Marine Engines, Snowmobiles, Motorcycles, etc. The manual is reproduced in color same as the original.  It is 152 pages long, including the latest specifications on equipment that is not included in the earlier versions being offered elsewhere.  Please enlarge the gallery images above to view the Table of Contents for the coil and condenser specification section, select pages, and to view the quality of the manual. In this model, there was no table of contents given for the operator section, however it is very similar to the model 9800 and model 88 which you can view in my Ebay store.

Includes sections on:

• Operation
• Armature Ground Test
• Automotive Type Coils
• Breaker Point Test Coil Continuity Test
• Coil Ground Test
• Coil Power Test
• Coil High Speed Test
• Coil Surface Insulation Test
• Condenser Test
• Continuity Test
• Service Notes and Operation Instructions
• Distribution Rotor Test
• Field Winding Ground Test
• High Tension Leakage-Crack Test (Distributor)
• Resistance Test (Low OHMS and Coil Primary)
• Spark Test (Ignition)
• Starter Soleniod Test
• Testing Coil with Two Secondaries
• Testing Conventional Type Magnetos
• Testing Diodes
• Testing Selenium Rectifiers
• Timing (Static)
• Coil and Condenser specifications (104 pages)

Number of pages: Approx 152
Publication No.:N/A
Publication/Revision Date: 1978

About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.

Added Notes: Due to competitors making copies of these manuals for resale, select pages have been lightly watermarked to discourage this practice
