For models: 14" & 16"

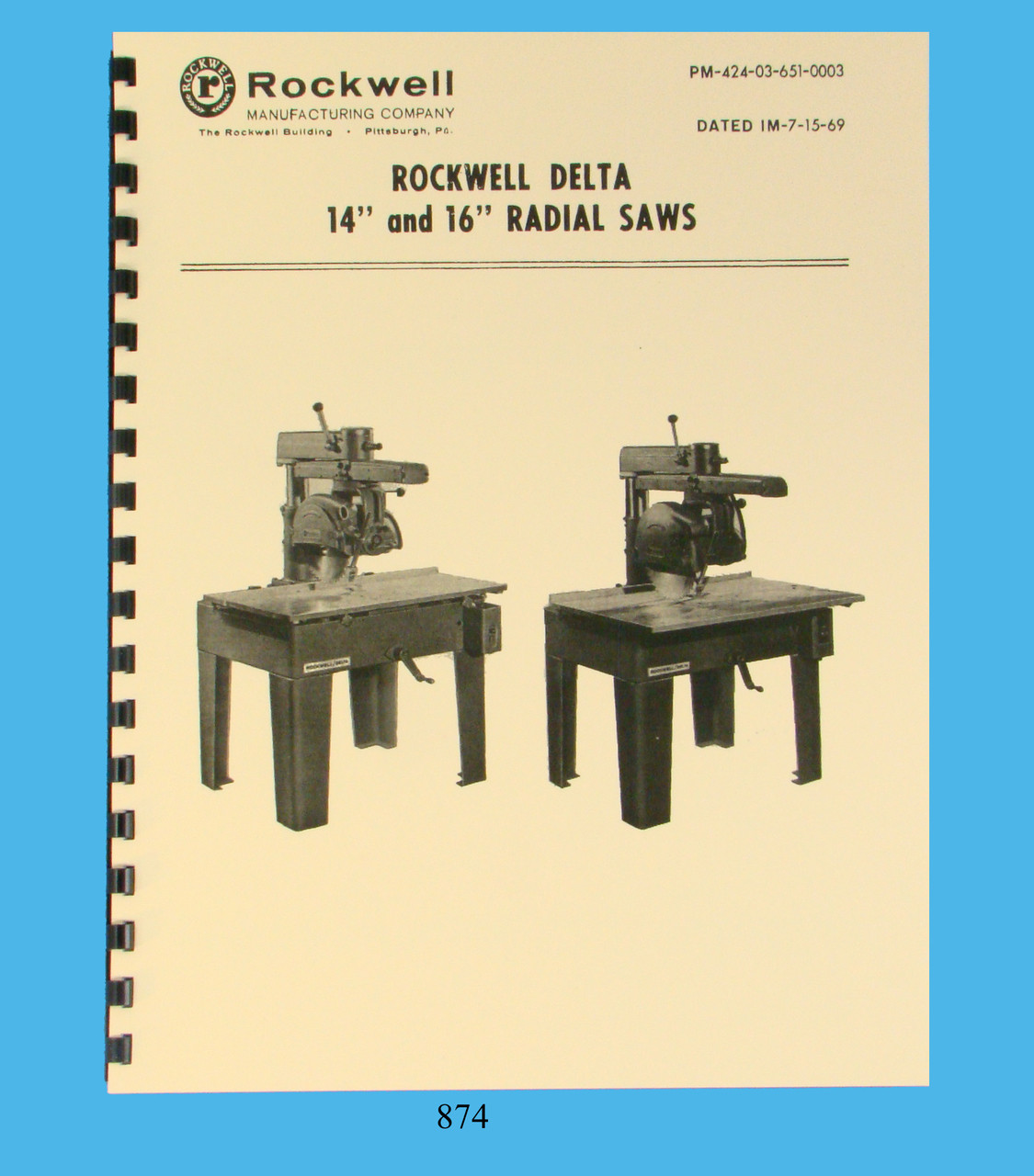

Description: This is an Operation and  Parts List manual for the Rockwell / Delta 14" & 16" Radial Arm Saws.   It has sections on:  Operation,  Maintenance, Exploded Parts Diagrams, & Parts List. It also has a Wiring Diagram section for the 14" , 16" , & 18" saws not included in the original manual.  It has 20 pages. and was printed in 1969.  To inspect the quality of the manual,  and to view select pages,  please click on the gallery images above to enlarge.

Includes sections on:

• Operation

• Adjustments
• Adjusting Table Top Parallel to Track Arm
• Taking Side Motion Out of Over Arm
• How to Tighten Yoke Against Bearing Carriage
• Adjusting Ball Bearings Against Track
• Adjustment of Track Rods
• Adjusting Blade Square with Table Top
• Adjusting Saw Travel Square with Fence
• Removing "Heeling" in Saw Cut
• Wiring Diagrams

• Exploded View Drawings & Parts List


Number of pages: Approx 20
Publication date: July 1969
Publication No.: PM-424-03-0003

About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.

Added Notes: Due to others making copies of these manuals for resale, I have lightly watermarked select pages to discourage this practice.
