Seneca Falls So-Swing Model LR Automatic Lathe

 Operating Manual & Parts List Catalog



For models: LR

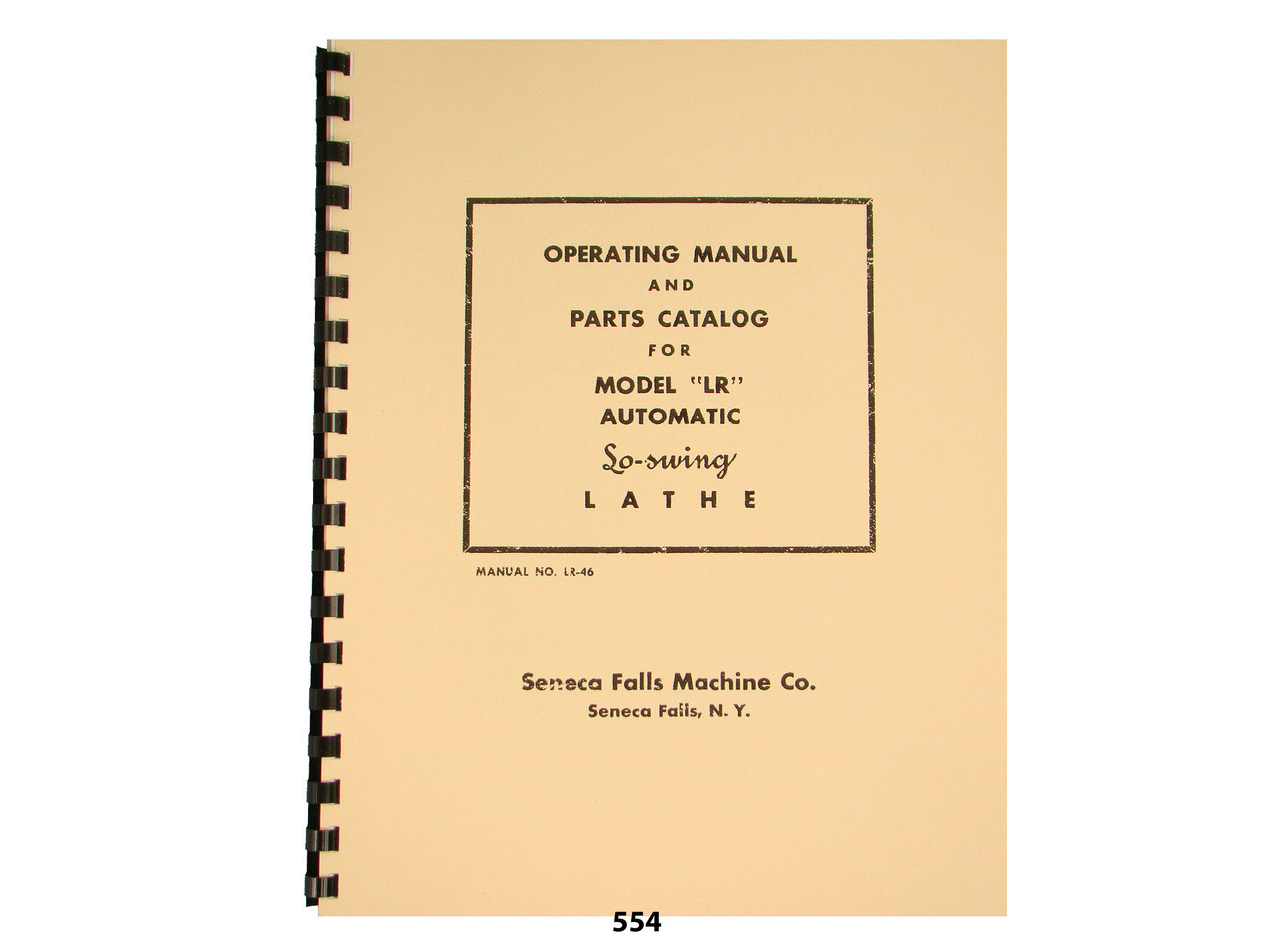

Description: This is a Operating Instruction & Parts List Manual for the Seneca Falls "So-Swing" Lathe.  It has sections on: Installation, Lubrication, Feed Mechanism, Spindle Drives, Setting up and Timing Machine, Adjustments, Tooling area data sheets, Speed and Feed Charts, Specifications, Assembly Drawings, and Parts Lists.   It has 58 pages.  To inspect the quality of the manual, to view the table of contents, and to view select pages,  please click on the gallery images above to enlarge.


Includes sections on:

• Parts Lists
• Assembly Drawings
• Installation
• Lubrication
• Feed Mechanisms
• Spindle Drives
• Belts
• Setting up Machine
• Timing Machine
• Adjustments
• Tooling Area Data Sheets
• Speed and Feed Charts
• Specifications


Number of pages: Approx 58
Condition of original:   Very Good
Publication date: N/A
Publication No.:  LR-46

Added Notes:   Due to others making copies of these manuals for resale, I have lightly watermarked select pages to discourage this practice.

About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.
