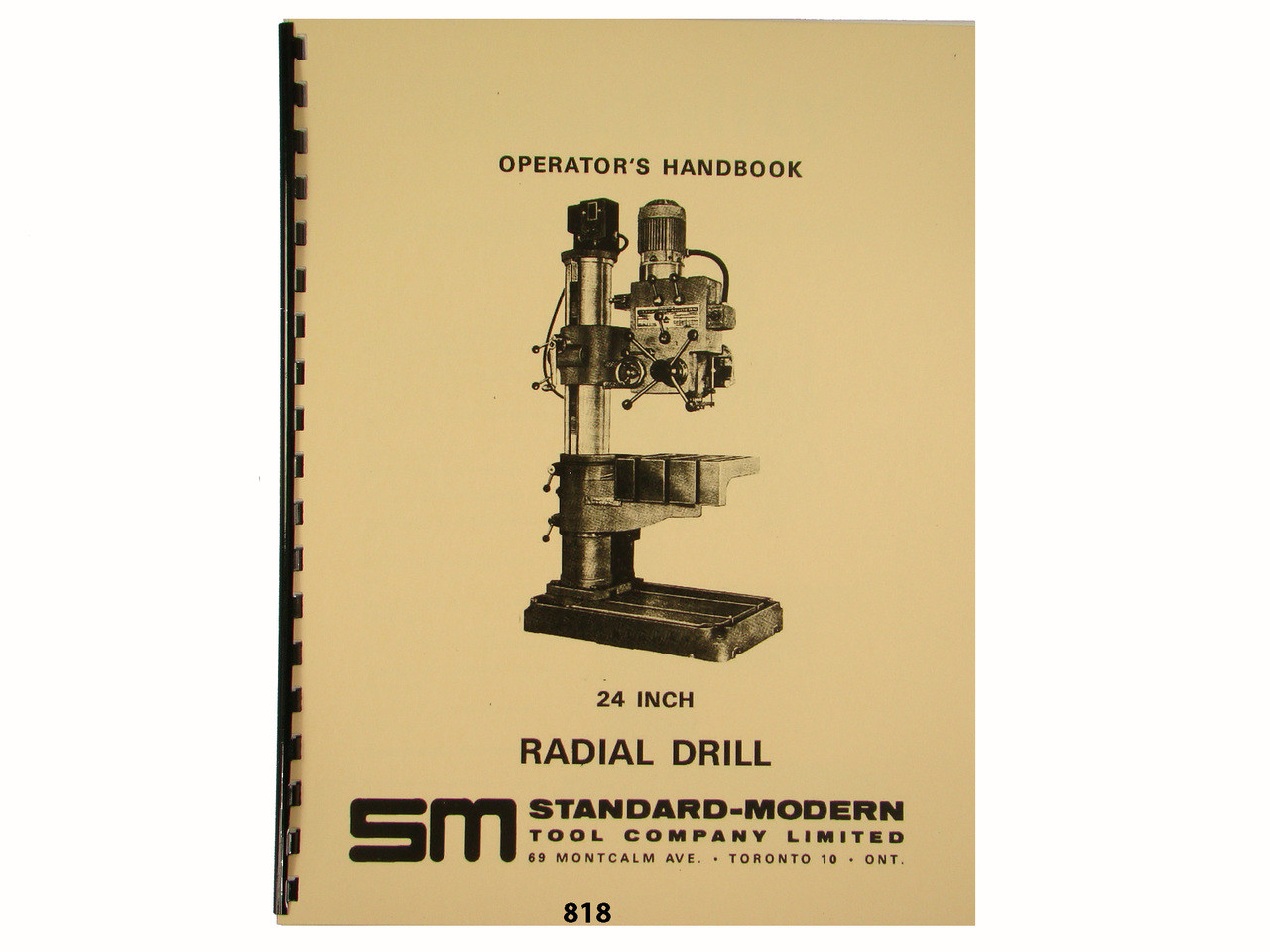

Standard Modern 24" Radial Arm Drill Press

Operators and Parts  Manual

For models: 24"

Description: This is an Operators and  Parts List Manual for the Standard Modern 24" Radial Drill.  It has Assembly Drawings and Parts Lists. The manual has 10 pages.  To inspect the quality of the manual, and to view select pages,  please click on the gallery images above to enlarge.


Includes sections on:

• Specifications
• Operating Instructions
• Wiring Diagram
• General Assembly Parts
• Spindle Gearbox Assembly Parts

Number of pages: Approx 10
Condition: Very Good
Publication date: N/A
Publication No.:  N/A

Added Notes: Due to others making copies of  this manual for resale, I have added a light
watermark on select pages to discourage this practice.
