Thermal Dynamics Pak Master 150XL Plasma Cutter

Service  Manual

For models: PakMaster 150XL

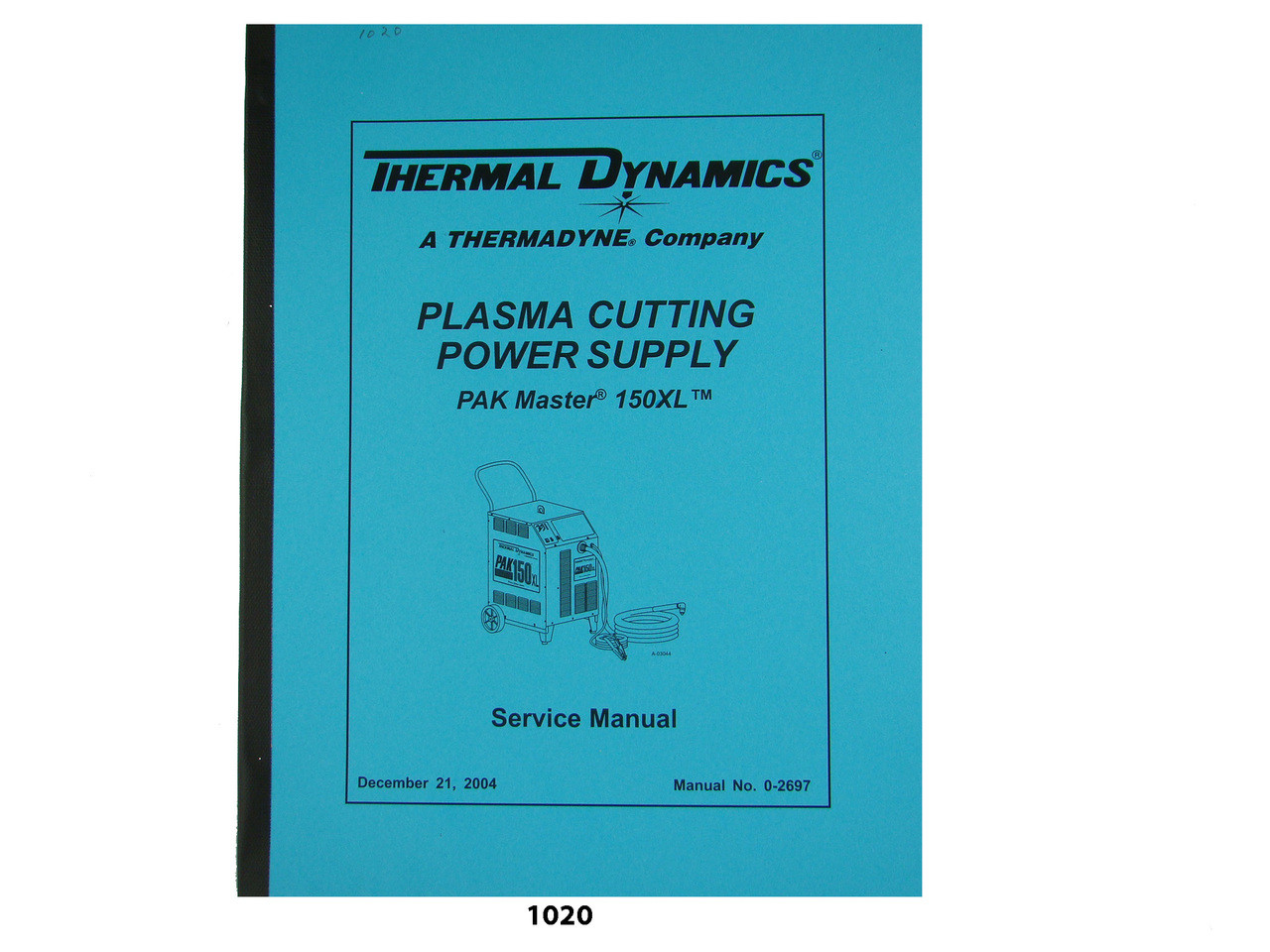

Description: This is a Service Manual for the model Pak Master 150XL  plasma cutter. It has instructions on test procedures, troubleshooting flow charts, wiring diagrams, repair and replacement procedures, and parts breakdown. The manual has 92 pages.  To inspect the quality of the manual, view the table of contents, and to view select pages,  please click on the gallery images above to enlarge.

Note: This manual does not  cover the operation or servicing of the torch.

Includes sections on:

• Servicing
• Test Procedures

• Troubleshooting Flow Charts
• Repair and Replacement Procedures

• Parts Lists
• Wiring Diagrams
• Theory of Operation


Number of pages: Approx 92
Condition: Very Good
Publication date: December 2004
Publication No.:  0-2697
