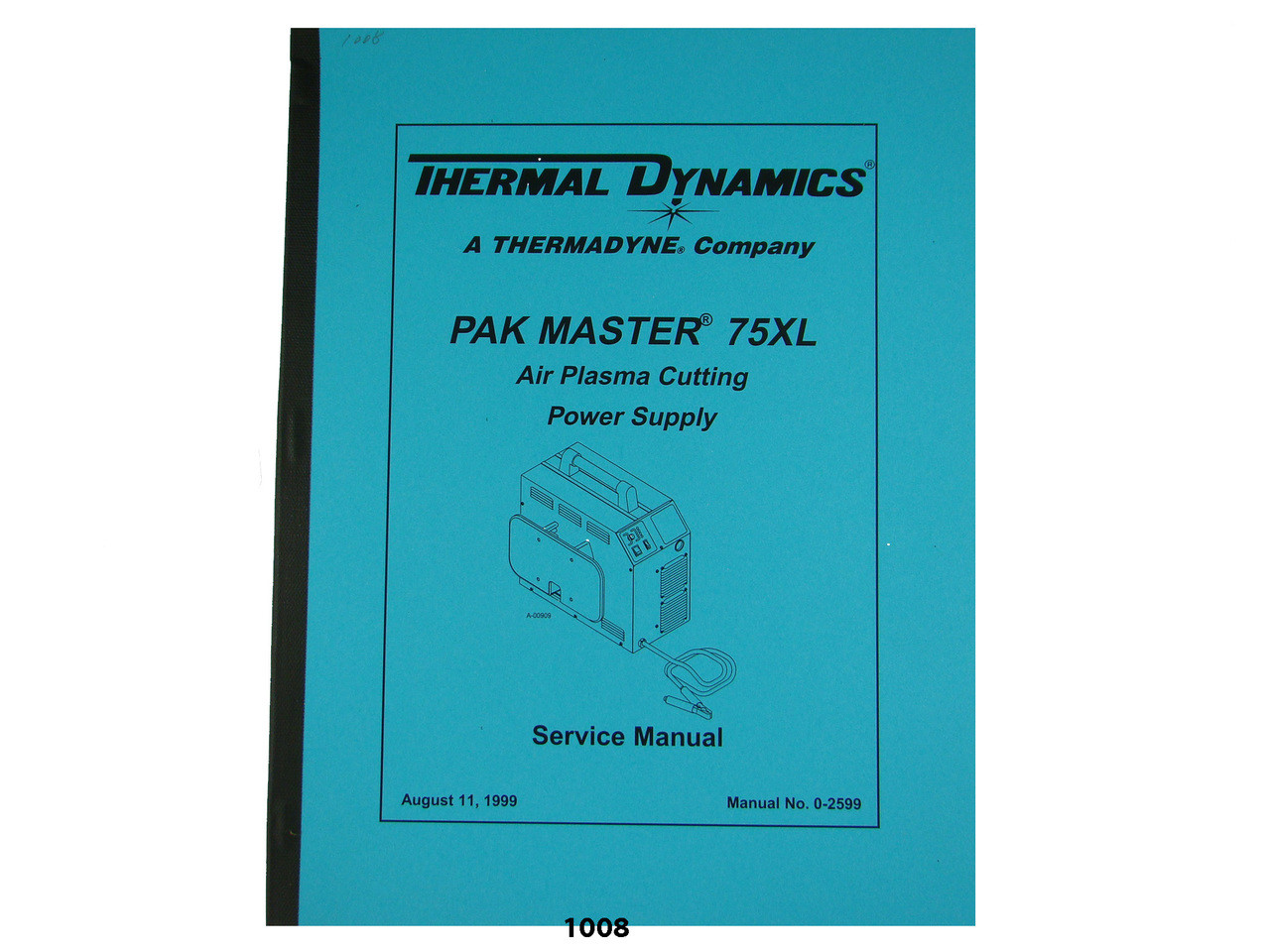

Thermal Dynamics Pak Master 75XL Plasma Cutter

Service  Manual

For models: PakMaster 75XL Plus
Description: This is a Service Manual for the model Pak Master 75XL  plasma cutter. It has instructions on test procedures, troubleshooting diagnostics, wiring diagrams, repair and replacement procedures, and parts breakdown. The manual has 67 pages.  To inspect the quality of the manual, view the table of contents, and to view select pages,  please click on the gallery images above to enlarge.

Note: This manual does not  cover the  torch.

Includes sections on:

• Servicing
• Test Procedures
• Troubleshooting Diagnostics
• Repair and Replacement Procedures
• Parts Lists
• Wiring Diagrams
• Theory of Operation

Number of pages: Approx 67
Condition: Very Good
Publication date: August, 1999
Publication No.:  0-2599
Added Notes:

About This Manual:    This manual is from a dealer that sold out the new old stock they no longer needed.
