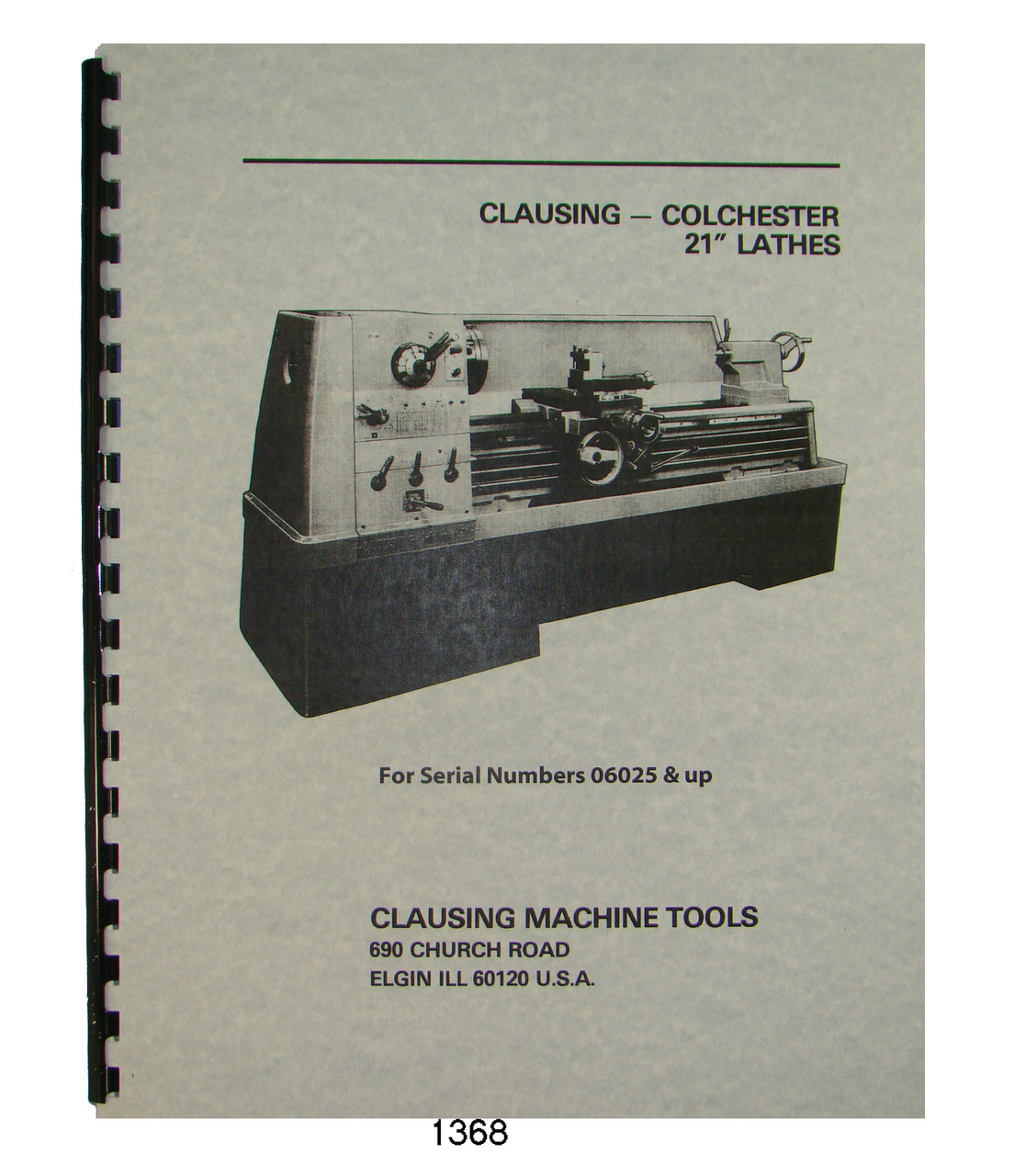

Clausing Colchester 21" Gap Bed Lathe  8000 Series

  Operation, Service, & Parts Manual

For models: 21" 8000 Series

For Serial Numbers: 06025 and up.

Description:This is an Operation, Service, & Parts List Manual for the 21"  Clausing Colchester Lathe. It has instructions on  operation, Servicing, a complete parts breakdown,  Maintenance, Lubrication, Drive belts, & Adjustments.  The manual has 68 pages.  To inspect the quality of the manual, to view the table of contents, and to view select pages,  please click on the gallery images above to enlarge.

Includes sections on:

• Operating Instructions
• Control Operation
• Lubrication

• Spindle Speeds
• Electromagnetic Brake
• Thread and Feed Selection
• Special Threads
• Leadscrew Shear Pin
• Drive Clutches
• Spindle Bearings
• Spindle Brake
• Lubrication Diagrams
• Wiring Diagrams

• Service and Belt Adjustments
• Assembly Breakdown Drawings
• Parts List


Number of pages: Approx 68

Publication date: N/A
Publication No.:  N/A
Added Notes:

About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop.

Questions?
Email: eugene@fabersurplus.com
Phone: 316-210-4079 after 11:00 am Central Time

Ships USPS First Class Free or
Upgrade to Priority Mail for faster delivery.

Reprinted from original manual using high quality 24lb
paper and comb binding.

Covers are printed from 65lb cardstock for extra durability.

Sales tax charged for Kansas sales.
